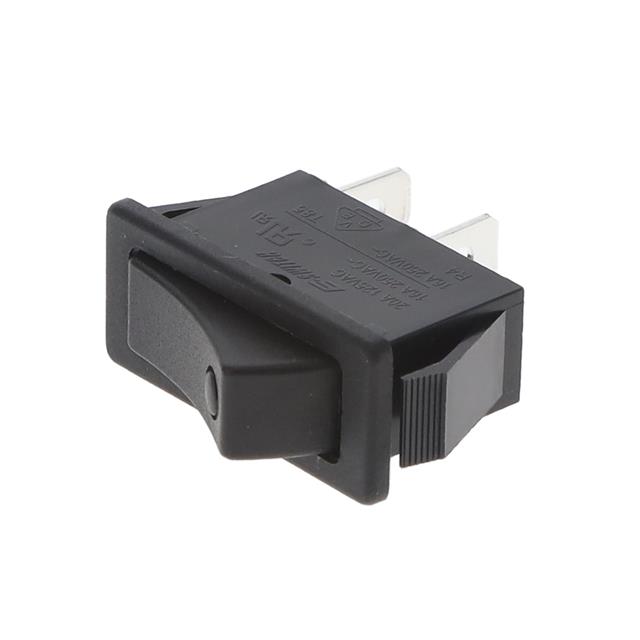

R4ABLKBLKEFODIMPLE
ActiveE-Switch
SWITCH ROCKER SPST 20A 125V
Deep-Dive with AI
Search across all available documentation for this part.
R4ABLKBLKEFODIMPLE
ActiveE-Switch
SWITCH ROCKER SPST 20A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R4ABLKBLKEFODIMPLE |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 30000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 30.1 mm |
| Panel Cutout Dimensions [y] | 11.1 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.40 | |
| 10 | $ 1.26 | |||
| 25 | $ 1.19 | |||
| 50 | $ 1.13 | |||
| 100 | $ 1.08 | |||
| 300 | $ 1.03 | |||
| 500 | $ 0.97 | |||
| 1000 | $ 0.93 | |||
Description
General part information
R4ABLKBL Series
Rocker Switch SPST 20A (AC) 125 V Panel Mount, Snap-In
