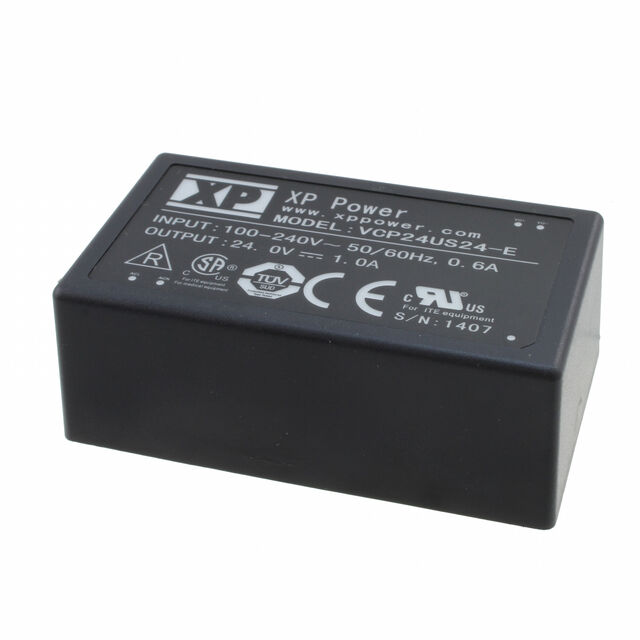

VCP24US24-E

Obsolete

XP Power

AC/DC CONVERTER 24V 24W

Search across all available documentation for this part.

Obsolete

XP Power

AC/DC CONVERTER 24V 24W

Technical Specifications

Parameters and characteristics for this part

AC/DC CONVERTER 24V 24W

Part	Applications	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Standard Number	Power (Watts)	Mounting Type	Current - Output (Max) [Max]	Load Regulation	Operating Temperature [Max]	Operating Temperature [Min]	Type	Approval Agency	Package / Case	Line Regulation	Number of Outputs	Weight	Weight	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]
XP Power VCP24US24-E	ITE (Commercial), Medical	Universal Input	1.12 in	79 mm	46 mm	3.11 in	1.81 in	28.5 mm	60601-1, 60950-1	24 W	Through Hole	1 A	2 %	70 °C	0 °C	Enclosed	cUL, EN, IEC	5-DIP Module	0.5 %	1	150.14 g	0.331 lb	24 V	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 1 Output 24V 1A 90 ~ 264 VAC Input
