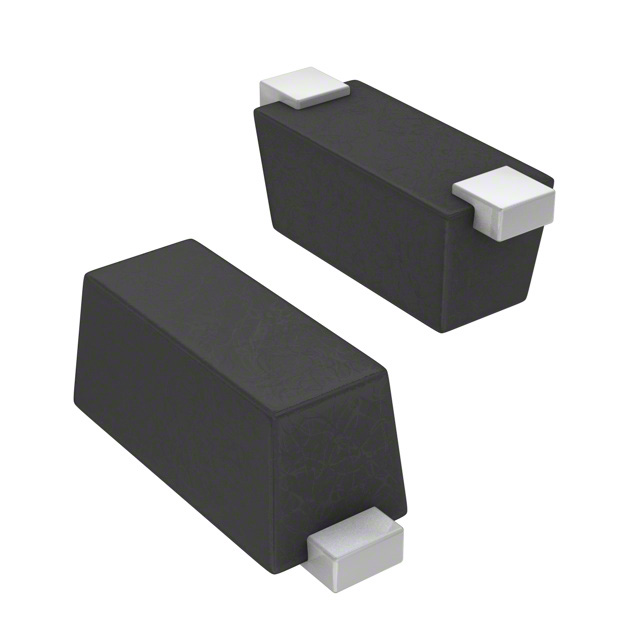

CPDQ5V0-HF

Active

Comchip Technology

ESD SUPPRESSOR DIODE TVS BI-DIR 5V 18.6VC 2-PIN SOD-923F T/R

Search across all available documentation for this part.

Active

Comchip Technology

ESD SUPPRESSOR DIODE TVS BI-DIR 5V 18.6VC 2-PIN SOD-923F T/R

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CPDQ5V0-HF	CPDQ5V0 Series

Applications	General Purpose	General Purpose
Bidirectional Channels [custom]	1	1
Capacitance @ Frequency	-	0.5 pF
Current - Peak Pulse (10/1000µs)	9.4 A	1 - 9.4 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 ¯C
Operating Temperature [Min]	-40 °C	-55 - -40 °C
Package / Case	SOD-923	SOD-923
Power - Peak Pulse	-	9.8 W
Power Line Protection	False	False
Supplier Device Package	0402	0402
Supplier Device Package	SOD-923F	SOD-923F
Type	Zener	Zener
Unidirectional Channels	-	1
Voltage - Breakdown (Min) [Min]	5.6 V	5.4 - 5.6 V
Voltage - Clamping (Max) @ Ipp [Max]	18.6 V	18.6 V
Voltage - Reverse Standoff (Typ)	5 V	5 V

TVS DIODE 5VWM 9.8V 0402/SOD923F

Part	Applications	Package / Case	Current - Peak Pulse (10/1000µs)	Type	Supplier Device Package	Supplier Device Package	Power - Peak Pulse	Voltage - Breakdown (Min) [Min]	Unidirectional Channels [custom]	Mounting Type	Voltage - Reverse Standoff (Typ)	Power Line Protection	Capacitance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]
Comchip Technology CPDQ5V0USP-HF	General Purpose	SOD-923	1 A	Zener	0402	SOD-923F	9.8 W	5.4 V	1	Surface Mount	5 V		0.5 pF	125 ¯C	-55 °C
Comchip Technology CPDQ5V0-HF	General Purpose	SOD-923	9.4 A	Zener	0402	SOD-923F		5.6 V		Surface Mount	5 V			125 °C	-40 °C	1	18.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18.6V Clamp 9.4A (8/20µs) Ipp Tvs Diode Surface Mount 0402/SOD-923F
