A1555.N0375.08
ActiveAmerican Electrical Inc.

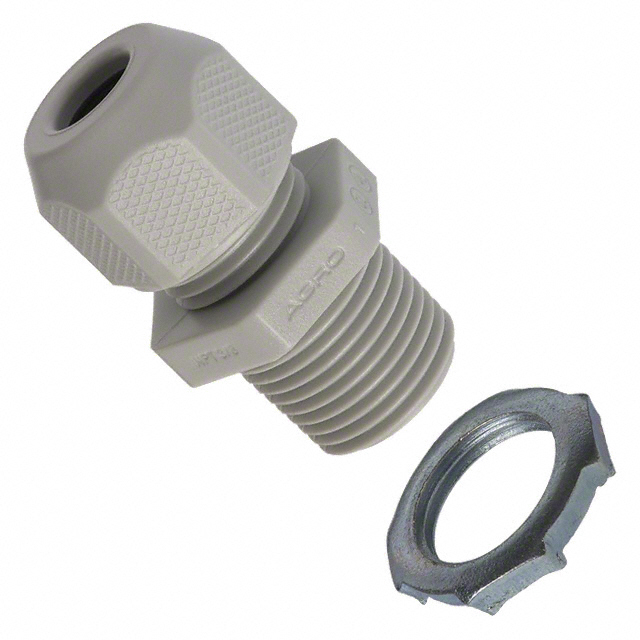

CABLE GLAND 3-8MM 3/8" NPT
Deep-Dive with AI
Search across all available documentation for this part.
A1555.N0375.08
ActiveAmerican Electrical Inc.
CABLE GLAND 3-8MM 3/8" NPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A1555.N0375.08 | 1555 Series |
|---|---|---|
| Color | Light Gray | Light Gray |
| Includes | Sealing Ring | Sealing Ring |
| Ingress Protection | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | IP68 - Dust Tight, Waterproof, IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant |
| Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Outside Cable Diameter (Max) | - | 11 - 44 mm |
| Outside Cable Diameter (Max) | - | 0.433 - 1.732 " |
| Outside Cable Diameter (Max) | - | 25 mm |
| Outside Cable Diameter (Max) [Max] [diameter] | 8 mm | 6.5 - 38 mm |
| Outside Cable Diameter (Max) [Max] [diameter] | 0.315 in | 0.256 - 1.496 " |
| Outside Cable Diameter (Min) | - | 0.138 - 1.102 in |
| Outside Cable Diameter (Min) | - | 3.5 - 28 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 3 mm | 2 - 32 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 0.118 in | 0.079 - 1.26 in |
| Panel Hole Size | - | 0.492 - 2.338 in |
| Panel Hole Size | - | 1.457 - 59.3 mm |
| Panel Hole Size | - | 37 mm |
| Thread Length | 0.591 in | 0.315 - 0.591 in |
| Thread Length | 15 mm | 8 - 15 mm |
| Thread Size | 3/8" NPT | PG16, PG7, PG11, PG13, M20x1.5, 3/4 NPT, 1" NPT, PG29, PG42, 3/8" NPT, PG21, PG48 |
| Type | Cable Gland | Cable Gland, Cable Gland, Short Entry |
1555 Series
CABLE GLAND 8.5-14MM PG16
| Part | Color | Operating Temperature [Max] | Operating Temperature [Min] | Type | Material | Ingress Protection | Thread Size | Panel Hole Size | Panel Hole Size | Outside Cable Diameter (Max) [Max] | Outside Cable Diameter (Max) [Max] | Includes | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) [Min] [diameter] | Thread Length | Thread Length | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Min) [Min] | Outside Cable Diameter (Min) [Min] | Outside Cable Diameter (Max) | Panel Hole Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
American Electrical Inc. A1555.16.14 | Light Gray | 100 °C | -30 ░C | Cable Gland | Polyamide (PA), Nylon | IP68 - Dust Tight, Waterproof | PG16 | 0.886 in | 22.5 mm | 14 mm | 0.551 " | Sealing Ring | 8.5 mm | 0.335 in | 10 mm | 0.394 in | ||||||
American Electrical Inc. A1555.07.06 | Light Gray | 100 °C | -30 ░C | Cable Gland | Polyamide (PA), Nylon | IP68 - Dust Tight, Waterproof | PG7 | 0.492 in | 12.5 mm | Sealing Ring | 2.5 mm | 0.098 in | 8 mm | 0.315 in | 0.256 " | 6.5 mm | ||||||
American Electrical Inc. A1555.11.10 | Light Gray | 100 °C | -30 ░C | Cable Gland | Polyamide (PA), Nylon | IP68 - Dust Tight, Waterproof | PG11 | 0.732 in | 18.6 mm | Sealing Ring | 8 mm | 0.315 in | 0.394 " | 10 mm | 0.157 in | 4 mm | ||||||
American Electrical Inc. A1555.11.07 | Light Gray | 100 °C | -30 ░C | Cable Gland | Polyamide (PA), Nylon | IP68 - Dust Tight, Waterproof | PG11 | 0.732 in | 18.6 mm | Sealing Ring | 2 mm | 0.079 in | 8 mm | 0.315 in | 0.276 in | 7 mm | ||||||
American Electrical Inc. A1555.13.12 | Light Gray | 100 °C | -30 ░C | Cable Gland | Polyamide (PA), Nylon | IP68 - Dust Tight, Waterproof | PG13 | Sealing Ring | 5.5 mm | 0.217 in | 9 mm | 0.354 in | 0.472 in | 12 mm | ||||||||
American Electrical Inc. A1555.20.08 | Light Gray | 100 °C | -30 ░C | Cable Gland, Short Entry | Polyamide (PA), Nylon | IP68 - Dust Tight, Waterproof | M20x1.5 | 0.787 in | 20 mm | Sealing Ring | 9 mm | 0.354 in | 0.315 in | 8 mm | 0.138 in | 3.5 mm | ||||||
American Electrical Inc. A1555.N0750.14 | Light Gray | 100 °C | -30 ░C | Cable Gland | Polyamide (PA), Nylon | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | 3/4 NPT | 14 mm | 0.551 " | Sealing Ring | 6.5 mm | 0.256 in | 15 mm | 0.591 in | ||||||||
American Electrical Inc. A1555.N1000.22 | Light Gray | 100 °C | -30 ░C | Cable Gland | Polyamide (PA), Nylon | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | 1" NPT | Sealing Ring | 15 mm | 0.591 in | 0.866 " | 22 mm | ||||||||||
American Electrical Inc. A1555.29.25 | Light Gray | 100 °C | -30 ░C | Cable Gland | Polyamide (PA), Nylon | IP68 - Dust Tight, Waterproof | PG29 | 1.457 in | Sealing Ring | 11 mm | 0.433 in | 0.984 in | 25 mm | 37 mm | ||||||||
American Electrical Inc. A1555.13.07 | Light Gray | 100 °C | -30 ░C | Cable Gland | Polyamide (PA), Nylon | IP68 - Dust Tight, Waterproof | PG13 | Sealing Ring | 3 mm | 0.118 in | 9 mm | 0.354 in | 0.276 in | 7 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.26 | |
| 10 | $ 1.97 | |||
| 25 | $ 1.89 | |||
| 50 | $ 1.84 | |||
| 100 | $ 1.76 | |||
| 250 | $ 1.59 | |||
| 500 | $ 1.47 | |||
| 1000 | $ 1.26 | |||
| 2500 | $ 1.17 | |||
Description
General part information
1555 Series
Cable Gland Polyamide (PA), Nylon 3/8" NPT Light Gray
