A1555.11.10

Active

American Electrical Inc.

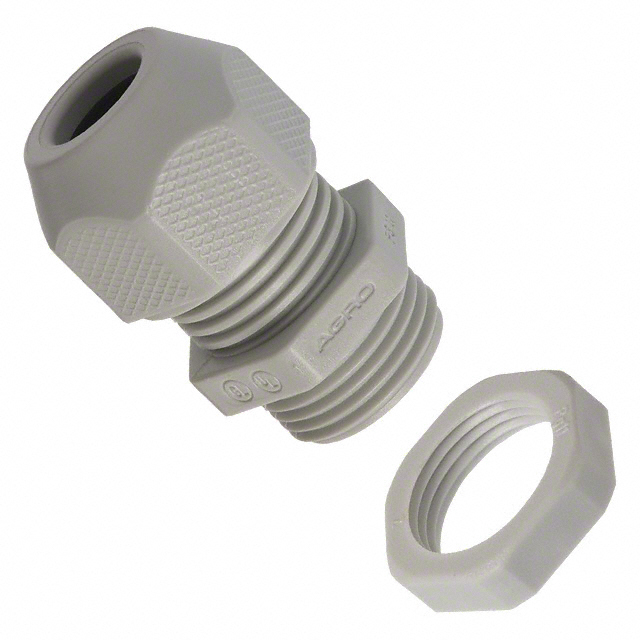

CABLE GLAND 4-10MM PG11 POLYAMID

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Knockout Hole Sizes

A1555.11.10

Active

American Electrical Inc.

CABLE GLAND 4-10MM PG11 POLYAMID

Deep-Dive with AI

DocumentsDatasheet Knockout Hole Sizes

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 2.26
		10	$ 1.97
		25	$ 1.89
		50	$ 1.84
		100	$ 1.76
		250	$ 1.59
		500	$ 1.47
		1000	$ 1.26
		2500	$ 1.17

Description

General part information

1555 Series

Cable Gland Polyamide (PA), Nylon PG11 Light Gray

Documents

Technical documentation and resources

Datasheet

Knockout Hole Sizes

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A1555.11.10	1555 Series

Color	Light Gray	Light Gray
Includes	Sealing Ring	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof, IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Outside Cable Diameter (Max)	-	11 - 44 mm
Outside Cable Diameter (Max)	-	0.433 - 1.732 "
Outside Cable Diameter (Max)	-	25 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "	0.256 - 1.496 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm	6.5 - 38 mm
Outside Cable Diameter (Min)	-	2 - 32 mm
Outside Cable Diameter (Min)	-	0.079 - 1.26 in
Outside Cable Diameter (Min) [Min]	0.157 in	0.138 - 1.102 in
Outside Cable Diameter (Min) [Min]	4 mm	3.5 - 28 mm
Panel Hole Size	18.6 mm	1.457 - 59.3 mm
Panel Hole Size	0.732 in	0.492 - 2.338 in
Panel Hole Size	-	37 mm
Thread Length	8 mm	8 - 15 mm
Thread Length	0.315 in	0.315 - 0.591 in
Thread Size	PG11	PG16, PG7, PG11, PG13, M20x1.5, 3/4 NPT, 1" NPT, PG29, PG42, 3/8" NPT, PG21, PG48
Type	Cable Gland	Cable Gland, Cable Gland, Short Entry

1555 Series

CABLE GLAND 8.5-14MM PG16

Part	Color	Operating Temperature [Max]	Operating Temperature [Min]	Type	Material	Ingress Protection	Thread Size	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max)	Panel Hole Size
American Electrical Inc. A1555.16.14	Light Gray	100 °C	-30 ░C	Cable Gland	Polyamide (PA), Nylon	IP68 - Dust Tight, Waterproof	PG16	0.886 in	22.5 mm	14 mm	0.551 "	Sealing Ring	8.5 mm	0.335 in	10 mm	0.394 in
American Electrical Inc. A1555.07.06	Light Gray	100 °C	-30 ░C	Cable Gland	Polyamide (PA), Nylon	IP68 - Dust Tight, Waterproof	PG7	0.492 in	12.5 mm			Sealing Ring	2.5 mm	0.098 in	8 mm	0.315 in	0.256 "	6.5 mm
American Electrical Inc. A1555.11.10	Light Gray	100 °C	-30 ░C	Cable Gland	Polyamide (PA), Nylon	IP68 - Dust Tight, Waterproof	PG11	0.732 in	18.6 mm			Sealing Ring			8 mm	0.315 in	0.394 "	10 mm	0.157 in	4 mm
American Electrical Inc. A1555.11.07	Light Gray	100 °C	-30 ░C	Cable Gland	Polyamide (PA), Nylon	IP68 - Dust Tight, Waterproof	PG11	0.732 in	18.6 mm			Sealing Ring	2 mm	0.079 in	8 mm	0.315 in	0.276 in	7 mm
American Electrical Inc. A1555.13.12	Light Gray	100 °C	-30 ░C	Cable Gland	Polyamide (PA), Nylon	IP68 - Dust Tight, Waterproof	PG13					Sealing Ring	5.5 mm	0.217 in	9 mm	0.354 in	0.472 in	12 mm
American Electrical Inc. A1555.20.08	Light Gray	100 °C	-30 ░C	Cable Gland, Short Entry	Polyamide (PA), Nylon	IP68 - Dust Tight, Waterproof	M20x1.5	0.787 in	20 mm			Sealing Ring			9 mm	0.354 in	0.315 in	8 mm	0.138 in	3.5 mm
American Electrical Inc. A1555.N0750.14	Light Gray	100 °C	-30 ░C	Cable Gland	Polyamide (PA), Nylon	IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant	3/4 NPT			14 mm	0.551 "	Sealing Ring	6.5 mm	0.256 in	15 mm	0.591 in
American Electrical Inc. A1555.N1000.22	Light Gray	100 °C	-30 ░C	Cable Gland	Polyamide (PA), Nylon	IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant	1" NPT					Sealing Ring			15 mm	0.591 in	0.866 "	22 mm
American Electrical Inc. A1555.29.25	Light Gray	100 °C	-30 ░C	Cable Gland	Polyamide (PA), Nylon	IP68 - Dust Tight, Waterproof	PG29		1.457 in			Sealing Ring			11 mm	0.433 in	0.984 in				25 mm	37 mm
American Electrical Inc. A1555.13.07	Light Gray	100 °C	-30 ░C	Cable Gland	Polyamide (PA), Nylon	IP68 - Dust Tight, Waterproof	PG13					Sealing Ring	3 mm	0.118 in	9 mm	0.354 in	0.276 in	7 mm
