Q-0J01J0003012i

Active

Amphenol Custom Cable

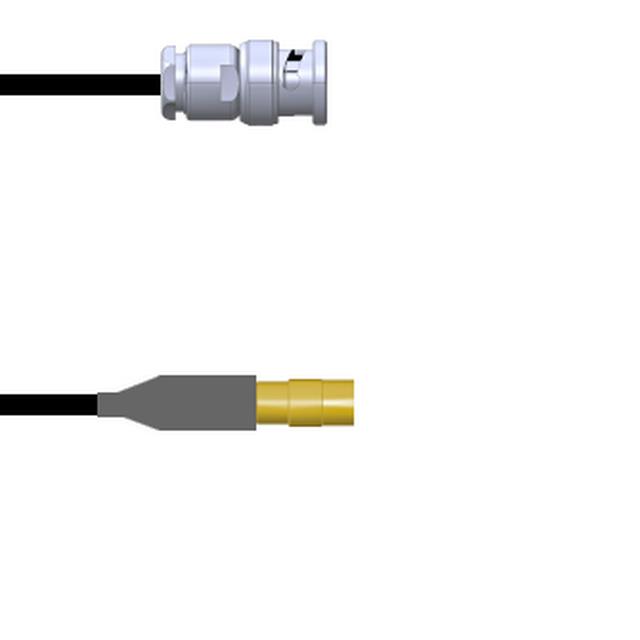

CBL ASSY BNC-MMCX PLUG-JACK 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J01J0003012i

Active

Amphenol Custom Cable

CBL ASSY BNC-MMCX PLUG-JACK 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J01J0003012i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MMCX Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	BNC to MMCX

Q-0J01J0 Series

Part	1st Contact Gender	Color	Cable Type	Style	Overall Impedance	1st Connector Mounting Type	2nd Connector	Frequency - Max [Max]	2nd Connector Mounting Type	Length	Length	Features	2nd Contact Gender	1st Connector	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-0J01J0005024i	Male	Copper	RG-316	BNC to MMCX	50 Ohms	Free Hanging (In-Line)	MMCX Jack	4 GHz	Free Hanging (In-Line)	24 "	609.6 mm	Shielded	Female	BNC Plug
Amphenol Custom Cable Q-0J01J0003006i	Male	Black	RG-174	BNC to MMCX	50 Ohms	Free Hanging (In-Line)	MMCX Jack	4 GHz	Free Hanging (In-Line)	6 in	152.4 mm	Shielded	Female	BNC Plug
Amphenol Custom Cable Q-0J01J0003.25M	Male	Black	RG-174	BNC to MMCX	50 Ohms	Free Hanging (In-Line)	MMCX Jack	4 GHz	Free Hanging (In-Line)			Shielded	Female	BNC Plug	9.843 "	250 mm
Amphenol Custom Cable Q-0J01J0003012i	Male	Black	RG-174	BNC to MMCX	50 Ohms	Free Hanging (In-Line)	MMCX Jack	4 GHz	Free Hanging (In-Line)	12 "	304.8 mm	Shielded	Female	BNC Plug
Amphenol Custom Cable Q-0J01J00032.5M	Male	Black	RG-174	BNC to MMCX	50 Ohms	Free Hanging (In-Line)	MMCX Jack	4 GHz	Free Hanging (In-Line)	98.4 in	2.5 m	Shielded	Female	BNC Plug			8.2 '
Amphenol Custom Cable Q-0J01J0005002M	Male	Copper	RG-316	BNC to MMCX	50 Ohms	Free Hanging (In-Line)	MMCX Jack	4 GHz	Free Hanging (In-Line)	78.7 in	2 m	Shielded	Female	BNC Plug			6.6 ft
Amphenol Custom Cable Q-0J01J00031.5M	Male	Black	RG-174	BNC to MMCX	50 Ohms	Free Hanging (In-Line)	MMCX Jack	4 GHz	Free Hanging (In-Line)	59.1 in	1.5 m	Shielded	Female	BNC Plug			4.9 ft
Amphenol Custom Cable Q-0J01J0003009i	Male	Black	RG-174	BNC to MMCX	50 Ohms	Free Hanging (In-Line)	MMCX Jack	4 GHz	Free Hanging (In-Line)	9 "	228.6 mm	Shielded	Female	BNC Plug
Amphenol Custom Cable Q-0J01J0003048i	Male	Black	RG-174	BNC to MMCX	50 Ohms	Free Hanging (In-Line)	MMCX Jack	4 GHz	Free Hanging (In-Line)	48 in	1200 mm	Shielded	Female	BNC Plug			4 ft
Amphenol Custom Cable Q-0J01J0005084i	Male	Copper	RG-316	BNC to MMCX	50 Ohms	Free Hanging (In-Line)	MMCX Jack	4 GHz	Free Hanging (In-Line)	84 in	2.1 m	Shielded	Female	BNC Plug			7 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 75.92
		25	$ 74.44
		50	$ 72.96
		100	$ 71.48
		250	$ 70.00

Description

General part information

Q-0J01J0 Series

Cable Assembly Coaxial BNC to MMCX RG-174 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
