SMI12-12-4B-P5

Active

CUI Inc.

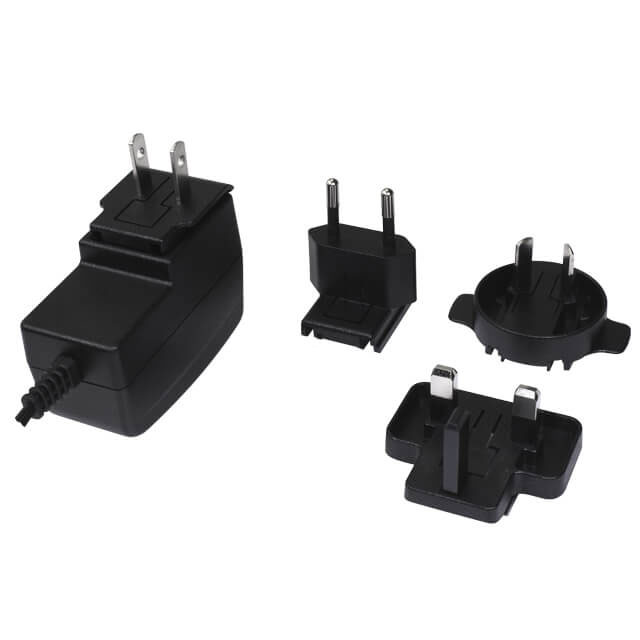

AC/DC WALL MOUNT ADAPTER 12V 12W

Deep-Dive with AI

Search across all available documentation for this part.

SMI12-12-4B-P5

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 12V 12W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMI12-12-4B-P5

Applications	ITE (Commercial)
Approval Agency	FCC, PSE, CE, cUIus
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade (Included)
Input Type	Multi-Blade (Included)
No Load Power Consumption [Max]	750 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	12 W
Region Utilized	International
Size / Dimension [x]	2.72 "
Size / Dimension [x]	69 mm
Size / Dimension [y]	31.8 mm
Size / Dimension [y]	1.25 in
Size / Dimension [z]	1.87 "
Size / Dimension [z]	47.5 mm
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

SMI12 Series

Part	Polarization	Efficiency	Cord Length	Cord Length	Output Connector [diameter]	Output Connector [x]	Output Connector	No Load Power Consumption [Max]	Input Type	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Input Connector	Region Utilized	Voltage - Output	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Standard Number	Power (Watts)	Applications	Form	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency
CUI Inc. SMI12-5-4W-P6	Positive Center	CoC Tier 2 Level VI	1.5 m	59 in	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	750 mW	Multi-Blade (Included)	2 A	-10 °C	40 °C	Multi-Blade (Included)	International	5 V	31.8 mm	1.87 "	2.72 "	47.5 mm	1.25 in	69 mm	62368-1	10 W	ITE (Commercial)	Wall Mount (Class II)	90 VAC	264 VAC	CE cUIus FCC PSE
CUI Inc. SMI12-9-KW-MUB		CoC Tier 2 Level VI	1.5 m	59 in			USB Micro	750 mW	Multi-Blade (Sold Separately)	1.33 A	-10 °C	40 °C	Multi-Blade	International	9 V	31.8 mm	1.87 "	2.72 "	47.5 mm	1.25 in	69 mm	62368-1	12 W	ITE (Commercial)	Wall Mount (Class II)	90 VAC	264 VAC	CE cUIus FCC PSE
CUI Inc. SMI12-9-VB-P5	Positive Center	CoC Tier 2 Level VI	1.5 m	59 in	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	750 mW	Multi-Blade (Included)	1.33 A	-10 °C	40 °C	Multi-Blade (Included)	International	9 V	31.8 mm	1.87 "	2.72 "	47.5 mm	1.25 in	69 mm	62368-1	12 W	ITE (Commercial)	Wall Mount (Class II)	90 VAC	264 VAC	CE cUIus FCC PSE
CUI Inc. SMI12-9-4B-MUB		CoC Tier 2 Level VI	1.5 m	59 in			USB Micro	750 mW	Multi-Blade (Included)	1.33 A	-10 °C	40 °C	Multi-Blade (Included)	International	9 V	31.8 mm	1.87 "	2.72 "	47.5 mm	1.25 in	69 mm	62368-1	12 W	ITE (Commercial)	Wall Mount (Class II)	90 VAC	264 VAC	CE cUIus FCC PSE
CUI Inc. SMI12-5-KW-MUB		CoC Tier 2 Level VI	1.5 m	59 in			USB Micro	750 mW	Multi-Blade (Sold Separately)	2 A	-10 °C	40 °C	Multi-Blade	International	5 V	31.8 mm	1.87 "	2.72 "	47.5 mm	1.25 in	69 mm	62368-1	10 W	ITE (Commercial)	Wall Mount (Class II)	90 VAC	264 VAC	CE cUIus FCC PSE
CUI Inc. SMI12-9-4B-P6	Positive Center	CoC Tier 2 Level VI	1.5 m	59 in	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	750 mW	Multi-Blade (Included)	1.33 A	-10 °C	40 °C	Multi-Blade (Included)	International	9 V	31.8 mm	1.87 "	2.72 "	47.5 mm	1.25 in	69 mm	62368-1	12 W	ITE (Commercial)	Wall Mount (Class II)	90 VAC	264 VAC	CE cUIus FCC PSE
CUI Inc. SMI12-12-VW-P5	Positive Center	CoC Tier 2 Level VI	1.5 m	59 in	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	750 mW	Multi-Blade (Included)	1 A	-10 °C	40 °C	Multi-Blade (Included)	International	12 V	31.8 mm	1.87 "	2.72 "	47.5 mm	1.25 in	69 mm	62368-1	12 W	ITE (Commercial)	Wall Mount (Class II)	90 VAC	264 VAC	CE cUIus FCC PSE
CUI Inc. SMI12-12-4B-P5	Positive Center	CoC Tier 2 Level VI	1.5 m	59 in	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	750 mW	Multi-Blade (Included)	1 A	-10 °C	40 °C	Multi-Blade (Included)	International	12 V	31.8 mm	1.87 "	2.72 "	47.5 mm	1.25 in	69 mm	62368-1	12 W	ITE (Commercial)	Wall Mount (Class II)	90 VAC	264 VAC	CE cUIus FCC PSE
CUI Inc. SMI12-9-KW-CUB		CoC Tier 2 Level VI	1.5 m	59 in			USB C Receptacle	750 mW	Multi-Blade (Sold Separately)	1.33 A	-10 °C	40 °C	Multi-Blade	International	9 V	31.8 mm	1.87 "	2.72 "	47.5 mm	1.25 in	69 mm	62368-1	12 W	ITE (Commercial)	Wall Mount (Class II)	90 VAC	264 VAC	CE cUIus FCC PSE
CUI Inc. SMI12-5-4W-CUB		CoC Tier 2 Level VI	1.5 m	59 in			USB C Receptacle	750 mW	Multi-Blade (Included)	2 A	-10 °C	40 °C	Multi-Blade (Included)	International	5 V	31.8 mm	1.87 "	2.72 "	47.5 mm	1.25 in	69 mm	62368-1	10 W	ITE (Commercial)	Wall Mount (Class II)	90 VAC	264 VAC	CE cUIus FCC PSE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	360	$ 10.10

Description

General part information

SMI12 Series

12V 12 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input

Documents

Technical documentation and resources

No documents available
