HW-04-07-T-S-230-070

Active

Samtec Inc.

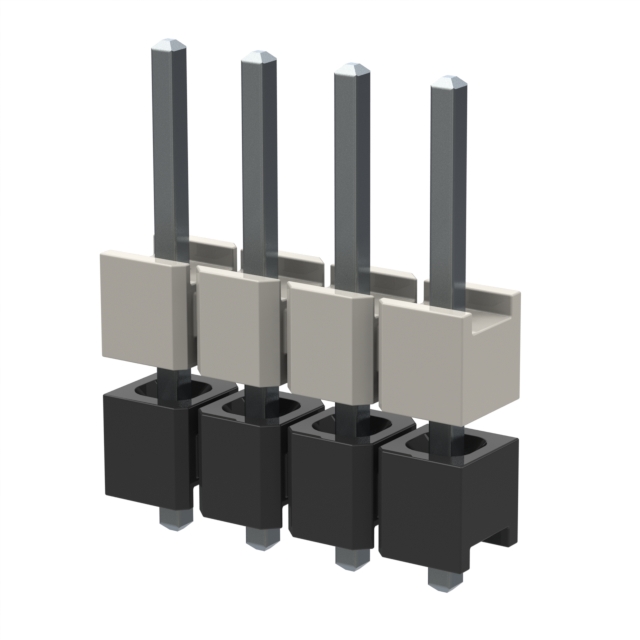

CONN HDR 4POS 0.1 STACK T/H

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 4POS 0.1 STACK T/H

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Contact Finish - Post (Mating)	Color	Number of Rows	Number of Positions	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Pitch [x]	Pitch [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Termination	Length - Tail	Length - Tail	Row Spacing [x]	Row Spacing	Length - Tail [x]	Length - Tail [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)
Samtec Inc. HW-04-07-T-S-230-070	Through Hole	Tin	Black	1	4	3.302 mm	0.13 in	2.54 mm	0.1 in	10.922 mm	0.43 in	Solder	0.07 in	1.778 mm
Samtec Inc. HW-04-07-G-D-200-100	Through Hole	Gold	Black	2	8	3.302 mm	0.13 in	2.54 mm	0.1 in	10.922 mm	0.43 in	Solder			0.1 in	2.54 mm	0.1 "	2.54 mm	0.25 Ám	10 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.55

General part information

4 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
