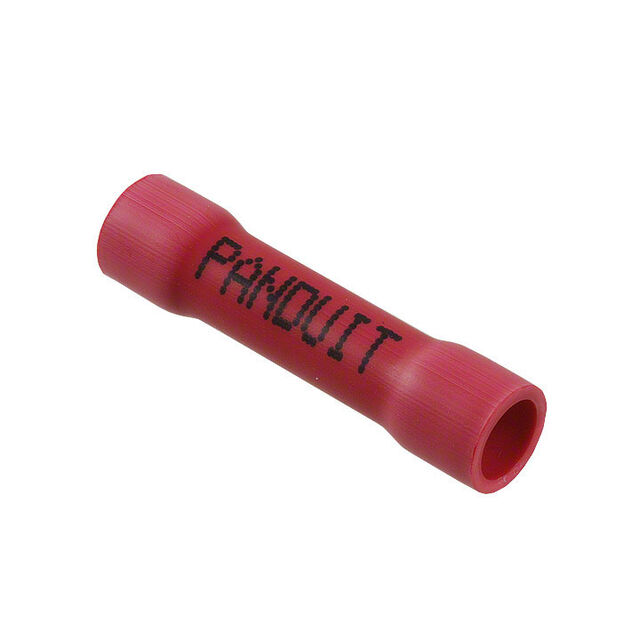

BSV18X-E

Active

Panduit Corp

CONN SPLICE 18-22 AWG CRIMP

Search across all available documentation for this part.

Active

Panduit Corp

CONN SPLICE 18-22 AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	BSV18X-E

Color	Red
Features	Brazed Seam
Insulation	Fully Insulated
Number of Wire Entries	2
Terminal Type	Butt Splice, Inline, Individual Openings
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

CONN SPLICE 18-22 AWG CRIMP

Part	Terminal Type	Termination	Color	Wire Gauge [Max]	Wire Gauge [Min]	Features	Insulation	Number of Wire Entries
Panduit Corp BSV18X-E	Butt Splice, Individual Openings, Inline	Crimp	Red	22 AWG	17.5 AWG	Brazed Seam	Fully Insulated	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 18-22 AWG Red
