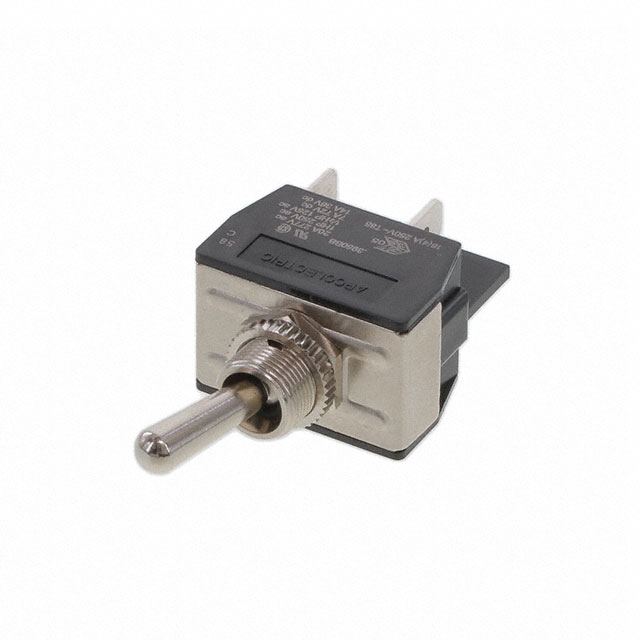

C3950BBAAA

Active

BULGIN LIMITED

SWITCH TOGGLE DPST 20A 250V

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH TOGGLE DPST 20A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	C3950BBAAA

Actuator Length [x]	17.5 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPST
Current Rating (Amps)	20 A
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	250 V

Part	Actuator Length [x]	Switch Function	Circuit	Termination Style	Current Rating (Amps)	Illumination	Bushing Thread	Actuator Type	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Voltage Rating - DC	Ingress Protection
BULGIN LIMITED C3950BBAAA	17.5 mm	On-Off	DPST	Quick Connect - 0.250" (6.3mm)	20 A	Non-Illuminated	15/32-32	Standard Round	12.7 mm	250 V
BULGIN LIMITED C3950BG	17.5 mm	On-Off	DPST	Quick Connect - 0.250" (6.3mm)	14 A 20 A	Non-Illuminated	15/32-32	Standard Round	12.7 mm	125 V	36 VDC	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch DPST Panel Mount
