7-1393670-0
ActiveTE Connectivity AMP Connectors

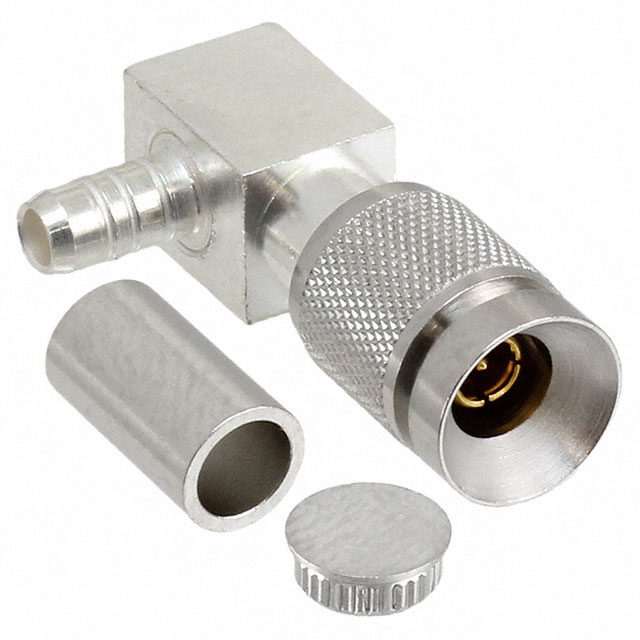

CONN 1.0/2.3 PLG R/A 75OHM SOLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7-1393670-0
ActiveTE Connectivity AMP Connectors
CONN 1.0/2.3 PLG R/A 75OHM SOLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 7-1393670-0 | 1393670 Series |
|---|---|---|
| Body Finish | - | Silver, Nickel |
| Body Material | - | Brass |
| Cable Group | 2YCY 0.45/2.0 | 2YCY 0.45/2.0, RG-174, RG-189B, RG-179B, 316, RG-179 |
| Center Contact Material | Brass | Beryllium Copper, Brass, Bronze |
| Center Contact Plating | Gold | Gold |
| Connector Style | 1.0/2.3 | 1.0/2.3 |
| Connector Type | Male Pin, Plug | Male Pin, Plug, Female Socket, Jack |
| Contact Termination | Solder | Crimp, Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull | Push-Pull, Latch Lock |
| Frequency - Max [Max] | 2 GHz | 2 - 10 GHz |
| Housing Color | - | Silver |
| Impedance | 75 Ohms | 50 - 75 Ohms |
| Includes | - | 1 Ferrule, 1 Contact, 1 Connector, Contact, Nut, Connector, Ferrule, 1 Nut |
| Mating Cycles | 500 | 500 |
| Mounting Feature | - | Bulkhead - Front Side Nut, Bulkhead |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Through Hole, Right Angle, Right Angle, Through Hole, Panel Mount |
| Number of Ports | 1 | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Shield Termination | Crimp | Crimp, Solder |
| Voltage Rating | - | 350 V |
1393670 Series
CONN 1.0/2.3 PLG STR 75OHM CRIMP
| Part | Connector Type | Mounting Type | Contact Termination | Mating Cycles | Number of Ports | Frequency - Max [Max] | Connector Style | Includes | Fastening Type | Shield Termination | Impedance | Center Contact Material | Body Finish | Body Material | Center Contact Plating | Housing Color | Dielectric Material | Cable Group | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 8-1393670-4 | Male Pin, Plug | Free Hanging (In-Line) | Crimp | 500 | 1 | 2 GHz | 1.0/2.3 | 1 Connector, 1 Contact, 1 Ferrule | Push-Pull | Crimp | 75 Ohms | |||||||||||
TE Connectivity AMP Connectors 3-1393670-9 | Female Socket, Jack | Through Hole, Right Angle | Solder | 500 | 1 | 10 GHz | 1.0/2.3 | Push-Pull | Solder | 50 Ohms | Beryllium Copper | Silver | Brass | Gold | Silver | Polytetrafluoroethylene (PTFE) | ||||||
TE Connectivity AMP Connectors 7-1393670-0 | Male Pin, Plug | Free Hanging (In-Line), Right Angle | Solder | 500 | 1 | 2 GHz | 1.0/2.3 | Push-Pull | Crimp | 75 Ohms | Brass | Gold | Polytetrafluoroethylene (PTFE) | 2YCY 0.45/2.0 | ||||||||
TE Connectivity AMP Connectors 8-1393670-9 | Male Pin, Plug | Free Hanging (In-Line) | Crimp | 500 | 1 | 2 GHz | 1.0/2.3 | 1 Connector, 1 Contact, 1 Ferrule | Push-Pull | Crimp | 75 Ohms | Beryllium Copper | Gold | Polytetrafluoroethylene (PTFE) | ||||||||
TE Connectivity AMP Connectors 6-1393670-0 | Male Pin, Plug | Free Hanging (In-Line) | Solder | 1 | 10 GHz | 1.0/2.3 | Latch Lock | Crimp | 75 Ohms | Beryllium Copper | Nickel | Brass | Gold | Polytetrafluoroethylene (PTFE) | RG-174 | 85 °C | -40 °C | |||||
TE Connectivity AMP Connectors 9-1393670-4 | Male Pin, Plug | Free Hanging (In-Line) | Crimp | 500 | 1 | 2 GHz | 1.0/2.3 | 1 Connector, 1 Contact, 1 Ferrule | Push-Pull | Crimp | 75 Ohms | Beryllium Copper | Gold | Polytetrafluoroethylene (PTFE) | ||||||||
TE Connectivity AMP Connectors 4-1393670-0 | Female Socket, Jack | Through Hole, Right Angle | Solder | 500 | 1 | 10 GHz | 1.0/2.3 | Push-Pull | Solder | 50 Ohms | Beryllium Copper | Silver | Brass | Gold | Silver | Polytetrafluoroethylene (PTFE) | ||||||
TE Connectivity AMP Connectors 8-1393670-0 | Female Socket, Jack | Solder | 500 | 1 | 2 GHz | 1.0/2.3 | Connector, Contact, Ferrule, Nut | Push-Pull | Crimp | 75 Ohms | Beryllium Copper | Gold | Polytetrafluoroethylene (PTFE) | RG-189B | Bulkhead - Front Side Nut | |||||||
TE Connectivity AMP Connectors 6-1393670-2 | Male Pin, Plug | Free Hanging (In-Line) | Solder | 500 | 1 | 2 GHz | 1.0/2.3 | 1 Connector, 1 Contact, 1 Ferrule | Push-Pull | Crimp | 75 Ohms | Beryllium Copper, Brass | Gold | Polytetrafluoroethylene (PTFE) | RG-179B | |||||||
TE Connectivity AMP Connectors 6-1393670-6 | Male Pin, Plug | Free Hanging (In-Line) | Crimp | 500 | 1 | 2 GHz | 1.0/2.3 | 1 Connector, 1 Contact, 1 Ferrule | Push-Pull | Crimp | 75 Ohms | Beryllium Copper | Gold | Polytetrafluoroethylene (PTFE) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1393670 Series
1.0/2.3 Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line), Right Angle Solder
