71212-503

Active

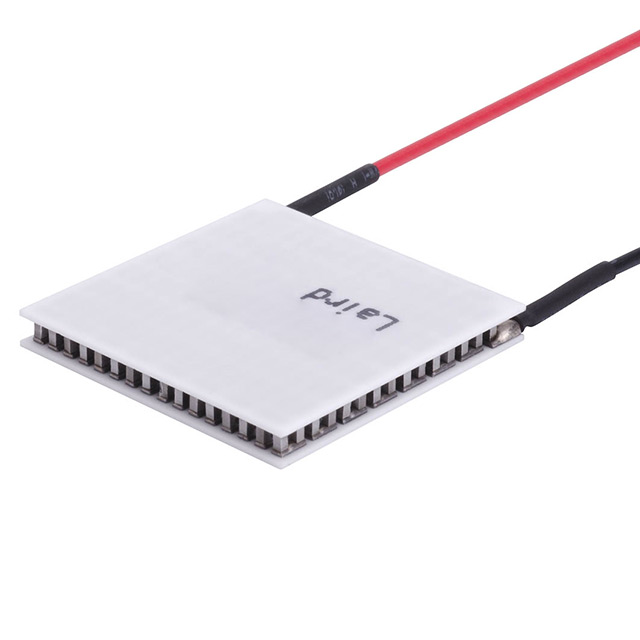

PELTIER CP085,127,06,L,RT,W4.5

Active

PELTIER CP085,127,06,L,RT,W4.5

Description

General part information

Peltier Module 20.0W @ 25°C 2.3 A 80°C

Parameters and characteristics for this part

Specification	71212-503

Current - Max	2.3 A
Delta Tmax	68 °C
Features	Silicone RTV, Lead Wires, Sealed
Height	3.58 mm
Maximum Power Dissipation (Qmax)	20 W
Number of Stages	1
Operating Temperature	80 °C
Resistance	5.76 Ohms
Size / Dimension Length	29.72 mm
Size / Dimension Shape	Square
Size / Dimension Width	29.72 mm
Voltage - Max	14.5 V

Part	Current - Max	Number of Stages	Operating Temperature	Features	Maximum Power Dissipation (Qmax)	Delta Tmax	Resistance	Height	Voltage - Max	Size / Dimension Shape	Size / Dimension Length	Size / Dimension Width
Laird Thermal Systems, Inc. 71212-503	2.3 A	1	80 °C	Lead Wires Sealed Silicone RTV	20 W	68 °C	5.76 Ohms	3.58 mm	14.5 V	Square	29.72 mm	29.72 mm
Laird Thermal Systems, Inc. 71212-502	2.3 A	1	80 °C	Lead Wires Non-Sealed	20 W	68 °C	5.76 Ohms	3.58 mm	14.5 V	Square	29.72 mm	29.72 mm
