BPJJ02AUX
ActiveSwitchcraft Inc.

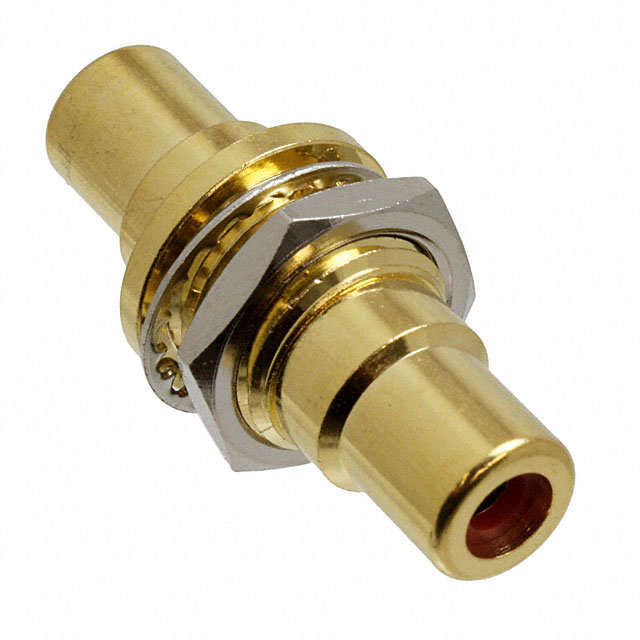

ADAPT RCA JACK TO RCA JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BPJJ02AUX
ActiveSwitchcraft Inc.
ADAPT RCA JACK TO RCA JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BPJJ02AUX | BPJJ02 Series |
|---|---|---|
| Actual Diameter [diameter] | 0.126 in, 0.327 in | 0.126 - 0.327 in |
| Actual Diameter [diameter] | 8.3 mm, 3.2 mm | 3.2 - 8.3 mm |
| Body Finish | Gold | Gold, Nickel |
| Body Material | Brass | Brass |
| Contact Material - Plating [custom] | Nickel | Nickel |
| Conversion Type | Same Series | Same Series |
| Convert From (Adapter End) | Phono (RCA) Jack | Phono (RCA) Jack |
| Convert To (Adapter End) | Phono (RCA) Jack | Phono (RCA) Jack |
| Features | Mounting Hardware | Mounting Hardware |
| Gender | Female to Female | Female to Female |
| Includes | Connector, Washer, Nut | Connector, Washer, Nut |
| Insulation Color | Red | Red |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Positions/Contacts | 2 Conductors | 2 Conductors |
| Shielding | Unshielded | Unshielded |
BPJJ02 Series
ADAPT RCA JACK TO RCA JACK
| Part | Includes | Actual Diameter [diameter] | Actual Diameter [diameter] | Gender | Features | Body Material | Contact Material - Plating [custom] | Body Finish | Number of Positions/Contacts | Shielding | Convert To (Adapter End) | Mounting Feature | Convert From (Adapter End) | Conversion Type | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. BPJJ02AUX | Connector, Nut, Washer | 0.126 in, 0.327 in | 3.2 mm, 8.3 mm | Female to Female | Mounting Hardware | Brass | Nickel | Gold | 2 Conductors | Unshielded | Phono (RCA) Jack | Bulkhead - Rear Side Nut | Phono (RCA) Jack | Same Series | Red |
Switchcraft Inc. BPJJ02X | Connector, Nut, Washer | 0.126 in, 0.327 in | 3.2 mm, 8.3 mm | Female to Female | Mounting Hardware | Brass | Nickel | Nickel | 2 Conductors | Unshielded | Phono (RCA) Jack | Bulkhead - Rear Side Nut | Phono (RCA) Jack | Same Series | Red |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.53 | |
| 10 | $ 6.78 | |||
| 25 | $ 6.38 | |||
| 50 | $ 6.22 | |||
| 100 | $ 6.06 | |||
| 300 | $ 5.76 | |||
Description
General part information
BPJJ02 Series
Adapter Connector Phono (RCA) Jack To Phono (RCA) Jack Panel Mount
