BPJJ02X

Active

Switchcraft Inc.

ADAPT RCA JACK TO RCA JACK

Search across all available documentation for this part.

Active

Switchcraft Inc.

ADAPT RCA JACK TO RCA JACK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

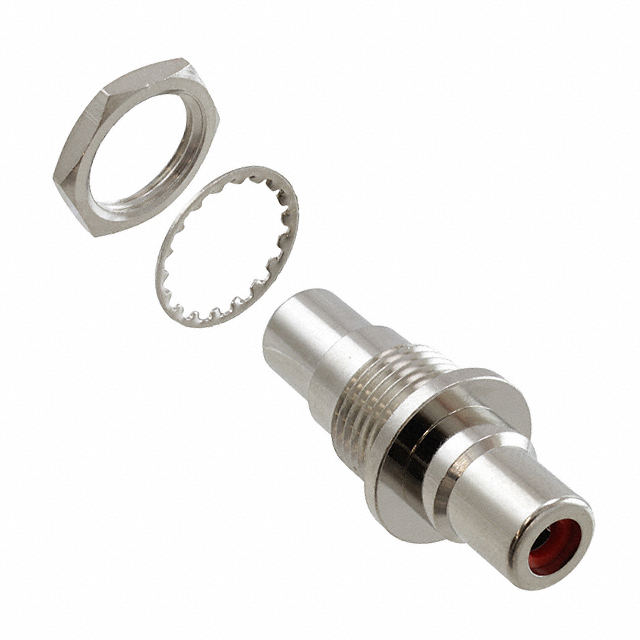

Adapter Connector Phono (RCA) Jack To Phono (RCA) Jack Panel Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BPJJ02X	BPJJ02 Series

Actual Diameter [diameter]	0.126 in, 0.327 in	0.126 - 0.327 in
Actual Diameter [diameter]	8.3 mm, 3.2 mm	3.2 - 8.3 mm
Body Finish	Nickel	Gold, Nickel
Body Material	Brass	Brass
Contact Material - Plating [custom]	Nickel	Nickel
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	Phono (RCA) Jack	Phono (RCA) Jack
Convert To (Adapter End)	Phono (RCA) Jack	Phono (RCA) Jack
Features	Mounting Hardware	Mounting Hardware
Gender	Female to Female	Female to Female
Includes	Connector, Washer, Nut	Connector, Washer, Nut
Insulation Color	Red	Red
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions/Contacts	2 Conductors	2 Conductors
Shielding	Unshielded	Unshielded

ADAPT RCA JACK TO RCA JACK

Part	Includes	Actual Diameter [diameter]	Actual Diameter [diameter]	Gender	Features	Body Material	Contact Material - Plating [custom]	Body Finish	Number of Positions/Contacts	Shielding	Convert To (Adapter End)	Mounting Feature	Convert From (Adapter End)	Conversion Type	Insulation Color
Switchcraft Inc. BPJJ02AUX	Connector, Nut, Washer	0.126 in, 0.327 in	3.2 mm, 8.3 mm	Female to Female	Mounting Hardware	Brass	Nickel	Gold	2 Conductors	Unshielded	Phono (RCA) Jack	Bulkhead - Rear Side Nut	Phono (RCA) Jack	Same Series	Red
Switchcraft Inc. BPJJ02X	Connector, Nut, Washer	0.126 in, 0.327 in	3.2 mm, 8.3 mm	Female to Female	Mounting Hardware	Brass	Nickel	Nickel	2 Conductors	Unshielded	Phono (RCA) Jack	Bulkhead - Rear Side Nut	Phono (RCA) Jack	Same Series	Red
