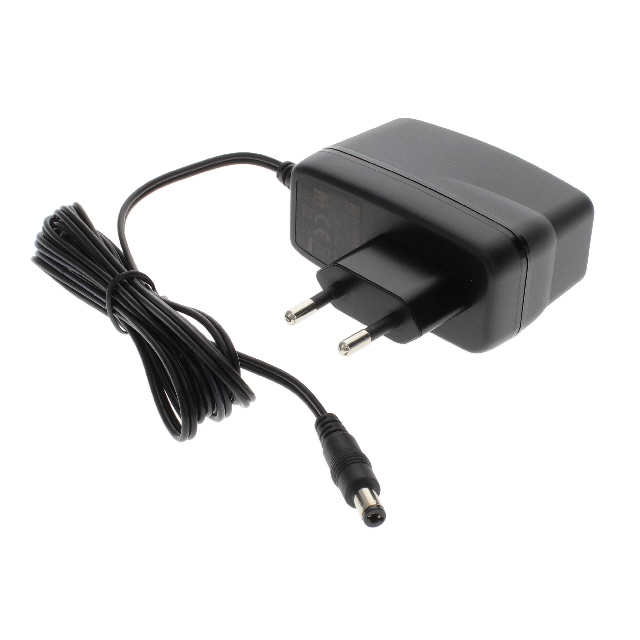

AA10E-050A-R

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 10W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 10W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AA10E-050A-R	AA10E Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	IEC	IEC
Cord Length	1.5 m	1.5 m
Cord Length	59 in	59 in
Current - Output (Max) [Max]	2 A	2 A
Efficiency	Level VI	Level VI
Form	Wall Mount (Class II)	Wall Mount (Class II)
Input Connector	CEE 7/16	CEE 7/16
Input Type	Fixed Blade	Fixed Blade
No Load Power Consumption [Max]	75 mW	75 mW
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	USB Micro, Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	10 W	10 W
Region Utilized	Europe	Europe
Size / Dimension [x]	71.2 mm	71.2 mm
Size / Dimension [x]	2.8 in	2.8 in
Size / Dimension [y]	1.34 in	1.34 in
Size / Dimension [y]	34 mm	34 mm
Size / Dimension [z]	2.55 in	2.55 in
Size / Dimension [z]	64.7 mm	64.7 mm
Standard Number	60950-1	60950-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	5 V	5 V

AC/DC WALL MOUNT ADAPTER 5V 10W

Part	Form	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Input Connector	Output Connector	Applications	Approval Agency	Efficiency	Power (Watts)	Region Utilized	No Load Power Consumption [Max]	Voltage - Output	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Cord Length	Cord Length	Current - Output (Max) [Max]	Output Connector [diameter]	Output Connector [x]	Polarization
Phihong USA AA10E-050A(M)-R	Wall Mount (Class II)	1.34 in	34 mm	2.55 in	71.2 mm	64.7 mm	2.8 in	60950-1	90 VAC	264 VAC	CEE 7/16	USB Micro	ITE (Commercial)	IEC	Level VI	10 W	Europe	75 mW	5 V	Fixed Blade	40 °C	0 °C	1.5 m	59 in	2 A
Phihong USA AA10E-050A-R	Wall Mount (Class II)	1.34 in	34 mm	2.55 in	71.2 mm	64.7 mm	2.8 in	60950-1	90 VAC	264 VAC	CEE 7/16	Barrel Plug	ITE (Commercial)	IEC	Level VI	10 W	Europe	75 mW	5 V	Fixed Blade	40 °C	0 °C	1.5 m	59 in	2 A	2.1 mm, 5.5 mm	9.5 mm	Positive Center

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 10 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
