3PS-094-2-YL-4

Active

BRADY

SLEEVE, 0.094 IN DIA X 0.5 IN W

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 0.094 IN DIA X 0.5 IN W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3PS-094-2-YL-4	3PS-094 Series

Color	Yellow	White, Green, Black, Brown, Yellow, Blue
Label Size	-	0.08 in
Label Size	-	2 mm
Label Size	-	0.02 in
Label Size	-	0.6 mm
Label Size	-	0.67 - 2 in
Label Size	-	0.09 in
Label Size [diameter]	2.4 mm	2.4 mm
Label Size [diameter]	0.09 in	0.09 in
Label Size [Max] [diameter]	2 mm	2 mm
Label Size [Max] [diameter]	0.08 in	0.08 in
Label Size [Min] [diameter]	0.6 mm	0.6 mm
Label Size [Min] [diameter]	0.02 in	0.02 in
Label Size [x]	12.7 mm	12.7 - 50.8 mm
Label Size [x]	0.5 "	0.5 "
Label Type	Heat Shrinkable	Heat Shrinkable
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C

SLEEVE 0.094"DIA X 2"W 1=2500PCS

Part	Material	Operating Temperature [Max]	Operating Temperature [Min]	Label Size [Max]	Label Size [Max]	Label Size [diameter]	Label Size [Min]	Label Size [x]	Label Size [Min]	Label Size [x]	Label Size [diameter]	Color	Label Type	Label Size [Max] [diameter]	Label Size [x]	Label Size [diameter]	Label Size [Max] [diameter]	Label Size [Min] [diameter]	Label Size [Min] [diameter]
BRADY 3PS-094-2-WT	Polyolefin (PO)	135 °C	-55 °C	0.08 in	2 mm	2.4 mm	0.02 in	50.8 mm	0.6 mm	2 in	0.09 in	White	Heat Shrinkable
BRADY 3PS-094-2-GR-S-2	Polyolefin (PO)	135 °C	-55 °C									Green	Heat Shrinkable
BRADY 3PS-094-2-OR	Polyolefin (PO)	135 °C	-55 °C	0.08 in	2 mm	2.4 mm	0.02 in	50.8 mm	0.6 mm	2 in	0.09 in		Heat Shrinkable
BRADY 3PS-094-2-OR-2	Polyolefin (PO)	135 °C	-55 °C										Heat Shrinkable
BRADY 3PS-094-2-GR	Polyolefin (PO)	135 °C	-55 °C	0.08 in	2 mm	2.4 mm	0.02 in	50.8 mm	0.6 mm	2 in	0.09 in	Green	Heat Shrinkable
BRADY 3PS-094-2-BL-2	Polyolefin (PO)	135 °C	-55 °C									Black	Heat Shrinkable
BRADY 3PS-094-2-BR	Polyolefin (PO)	135 °C	-55 °C	0.08 in	2 mm	2.4 mm	0.02 in	50.8 mm	0.6 mm	2 in	0.09 in	Brown	Heat Shrinkable
BRADY 3PS-094-2-WT-S-2	Polyolefin (PO)	135 °C	-55 °C									White	Heat Shrinkable
BRADY 3PS-094-2-BK-S	Polyolefin (PO)	135 °C	-55 °C	0.08 in	2 mm	2.4 mm	0.02 in	50.8 mm	0.6 mm	2 in	0.09 in	Black	Heat Shrinkable
BRADY 3PS-094-2-YL-4	Polyolefin (PO)	135 °C	-55 °C			2.4 mm		12.7 mm				Yellow	Heat Shrinkable	2 mm	0.5 "	0.09 in	0.08 in	0.6 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1389.00

General part information

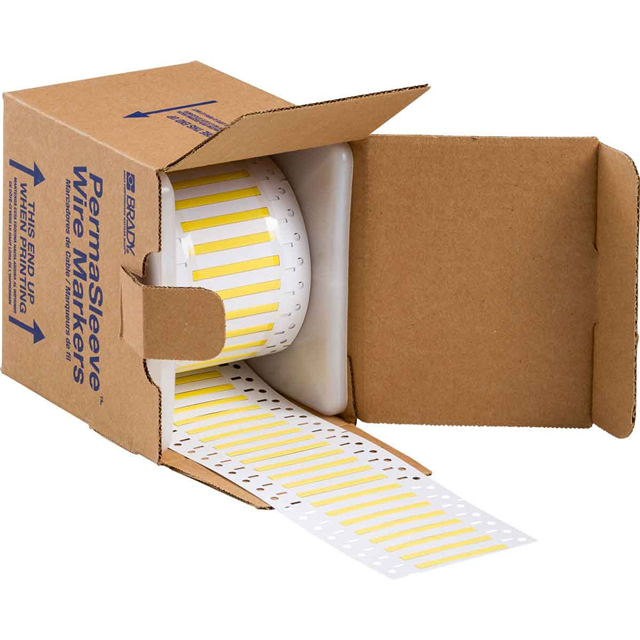

Yellow Heat Shrinkable Label 0.50" W x 0.09" Dia (12.7mm x 2.4mm); Cable O.D. 0.02" ~ 0.08" (0.6mm ~ 2.0mm)
