GTS447D301HR

Active

CW Industries

SWITCH TOGGLE SPDT 16A 277V

Search across all available documentation for this part.

Active

CW Industries

SWITCH TOGGLE SPDT 16A 277V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GTS447D301HR	GTS447D Series

Actuator Length [x]	17 mm	17 - 17.5 mm
Actuator Type	Flatted	Standard Round, Flatted
Bushing Thread	15/32-32	15/32-32
Circuit	SPDT	SPDT
Current Rating (Amps)	16 A	16 A
Electrical Life	10000 Cycles	10000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP56 - Dust Protected, Water Resistant	IP56 - Dust Protected, Water Resistant
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions [diameter]	12.2 mm	12.2 mm
Switch Function	On-Off-On	On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	277 V	277 V

SWITCH TOGGLE SPDT 16A 277V

Part	Termination Style	Voltage Rating - AC	Ingress Protection	Illumination	Circuit	Bushing Thread	Actuator Type	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Switch Function	Panel Cutout Dimensions [diameter]	Actuator Length [x]
CW Industries GTS447D101HR	Quick Connect - 0.250" (6.3mm)	277 V	IP56 - Dust Protected, Water Resistant	Non-Illuminated	SPDT	15/32-32	Standard Round	10000 Cycles	0 °C	85 °C	16 A	On-Off-On	12.2 mm	17.5 mm
CW Industries GTS447D301HR	Quick Connect - 0.250" (6.3mm)	277 V	IP56 - Dust Protected, Water Resistant	Non-Illuminated	SPDT	15/32-32	Flatted	10000 Cycles	0 °C	85 °C	16 A	On-Off-On	12.2 mm	17 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

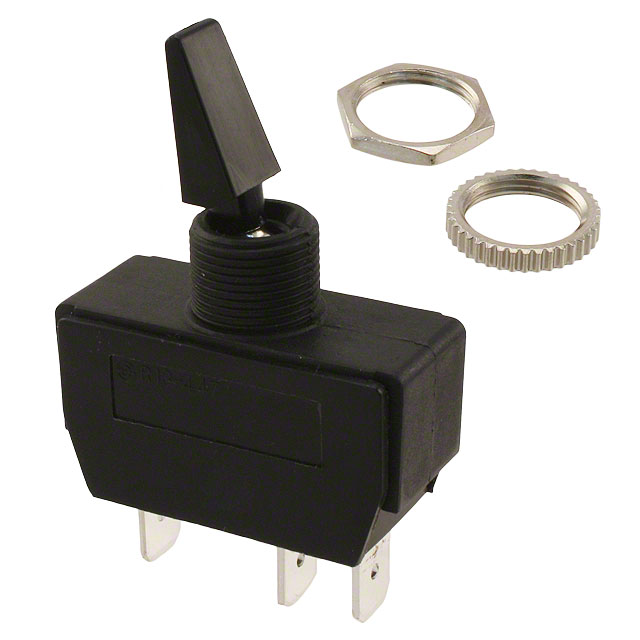

Toggle Switch SPDT Panel Mount
