272300

Active

Amphenol RF

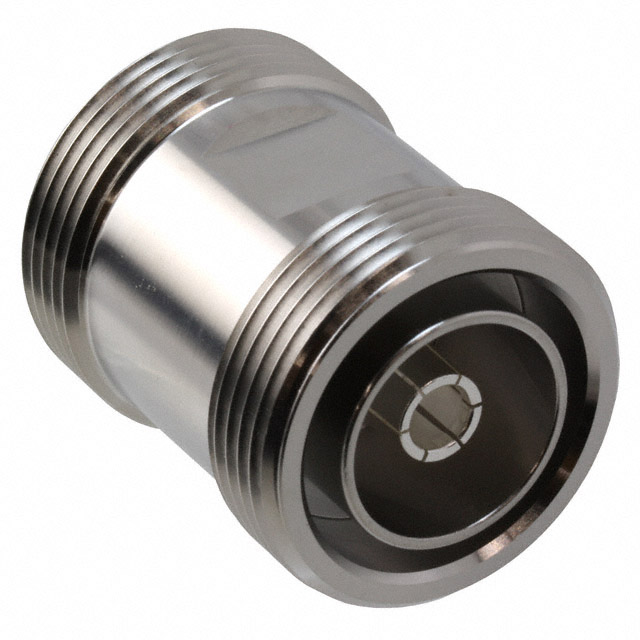

RF COAX, ADAPTOR, 7/16 JACK TO 7/16 JACK

Search across all available documentation for this part.

Active

Amphenol RF

RF COAX, ADAPTOR, 7/16 JACK TO 7/16 JACK

Technical Specifications

Parameters and characteristics for this part

Specification	272300

Adapter Series	7/16 DIN to 7/16 DIN
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	7/16 Jack, Female Socket
Convert To (Adapter End)	Female Socket, 7/16 Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Low PIM
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Mating Cycles	Center Gender	Adapter Type	Adapter Series	Features	Ingress Protection	Body Material	Frequency - Max [Max]	Convert To (Adapter End)	Center Contact Material	Center Contact Plating	Mounting Type	Body Finish	Style	Conversion Type	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Dielectric Material	Convert From (Adapter End)
Amphenol RF 272300	500	Female to Female	Jack to Jack	7/16 DIN to 7/16 DIN	Low PIM	IP67 - Dust Tight Waterproof	Brass	6000 MHz	7/16 Jack Female Socket	Beryllium Copper	Gold	Free Hanging (In-Line)	White Bronze	Straight	Same Series	155 °C	-55 °C	50 Ohms	Polytetrafluoroethylene (PTFE)	7/16 Jack Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 7/16 Jack, Female Socket To 7/16 Jack, Female Socket 50 Ohms
