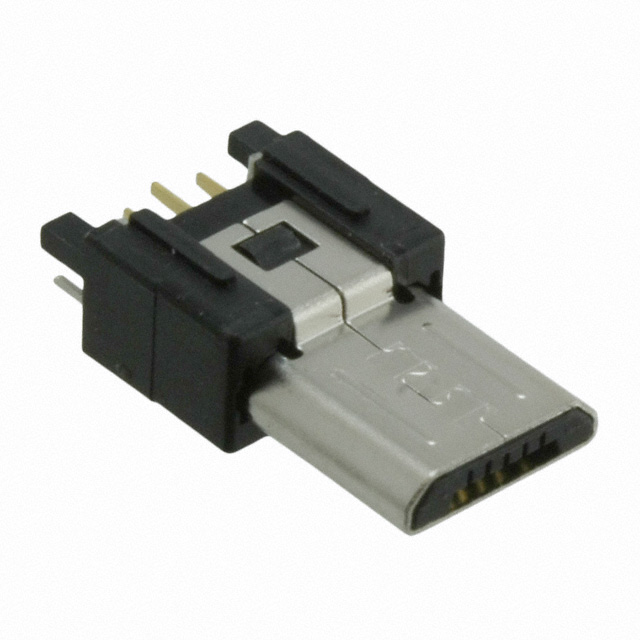

10104109-0001LF
ObsoleteAmphenol ICC (FCI)
CONN PLG USB2.0 MICRO B BRD EDGE
10104109-0001LF
ObsoleteAmphenol ICC (FCI)
CONN PLG USB2.0 MICRO B BRD EDGE
Description
General part information
10104109 Series
USB - micro B USB 2.0 Plug Connector 5 Position Board Edge, Straddle Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 10104109-0001LF |
|---|---|
| Connector Type | USB - micro B |
| Contact Finish | Gold |
| Gender | Plug |
| Insulation Color | Black |
| Mounting Type | Straddle Mount, Board Edge |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Shell/Shielding Material | Steel, Stainless |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
