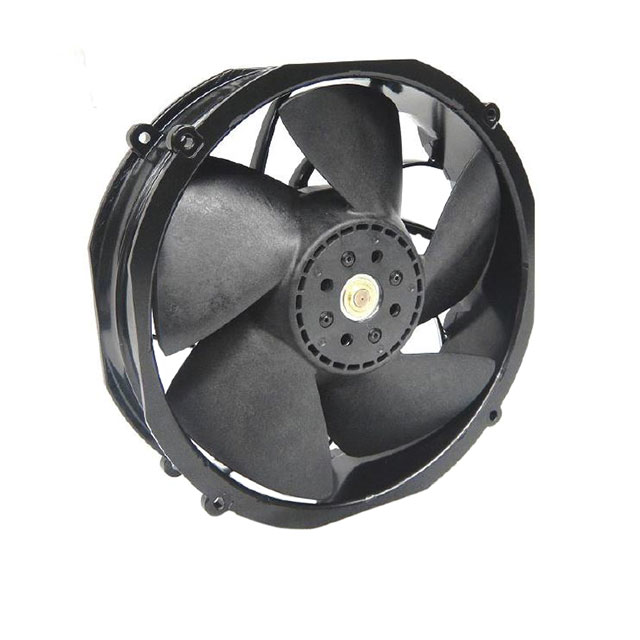

R200A0-051-D0760

Active

NMB TECHNOLOGIES

FAN AXIAL 200X51MM 48VDC WIRE

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

FAN AXIAL 200X51MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	R200A0-051-D0760

Air Flow	783 CFM
Air Flow	21.92 mł/min
Bearing Type	Ball
Current Rating (Amps)	2.9 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	74 dB(A)
Operating Temperature [Max] [custom]	70 °C
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-30 °C
Operating Temperature [Min] [custom]	-22 °F
Power (Watts)	139.2 W
RPM	6500 RPM
Size / Dimension	Round
Size / Dimension [diameter]	200 mm
Static Pressure	4.12 in H2O
Static Pressure	1028 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	72 VDC
Voltage Range [Min]	30 VDC
Weight	2.6 lbs
Weight	1.2 kg
Width [y]	51 mm

FAN AXIAL 200X51MM 48VDC WIRE

Part	Termination	Air Flow	Air Flow	Weight	Weight	Size / Dimension [diameter]	Size / Dimension	Features	Lifetime @ Temp.	Voltage - Rated [custom]	Voltage Range [Min]	Voltage Range [Max]	Width [y]	Bearing Type	Noise	Operating Temperature [Min] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Max] [custom]	Fan Type	RPM	Power (Watts)	Material - Frame	Static Pressure	Static Pressure	Material - Blade	Current Rating (Amps)
NMB TECHNOLOGIES R200A0-051-D0760	4 Wire Leads	783 CFM	21.92 mł/min	2.6 lbs	1.2 kg	200 mm	Round	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	70000 Hrs	48 VDC	30 VDC	72 VDC	51 mm	Ball	74 dB(A)	-30 °C	-22 °F	70 °C	158 °F	Tubeaxial	6500 RPM	139.2 W	Aluminum	4.12 in H2O	1028 Pa	Plastic	2.9 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Round - 200mm Dia Ball 783.0 CFM (21.92mł/min) 4 Wire Leads
