BSN18-3K

Active

Panduit Corp

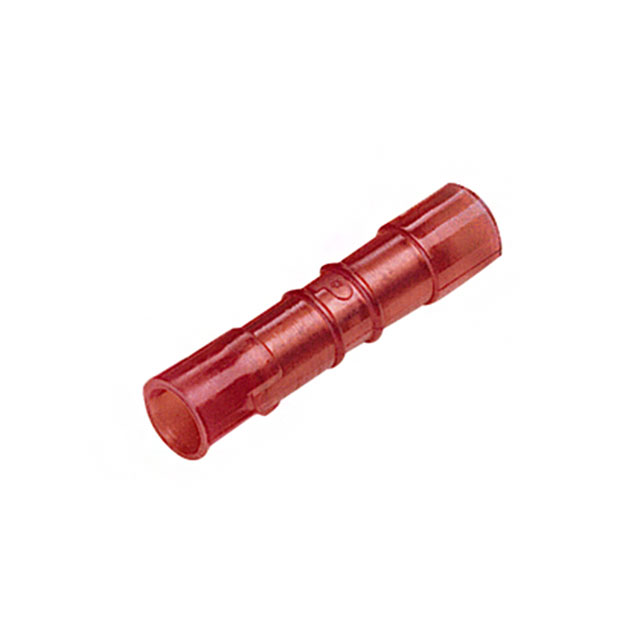

BUTT SPLICE, RED, BSN SERIES, 22 AWG, 16 AWG, 1.5 MM², NYLON (POLYAMIDE)

Search across all available documentation for this part.

Active

Panduit Corp

BUTT SPLICE, RED, BSN SERIES, 22 AWG, 16 AWG, 1.5 MM², NYLON (POLYAMIDE)

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BSN18-3K	BSN18 Series

Color	Red	Red
Features	Brazed Seam	Brazed Seam
Insulation	Fully Insulated	Fully Insulated
Number of Wire Entries	2	2
Terminal Type	Butt Splice, Inline, Individual Openings	Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	16 AWG	16 - 17.5 AWG

BUTT SPLICE, RED, BSN SERIES, 22 AWG, 16 AWG, 1.5 MM², NYLON (POLYAMIDE)

Part	Features	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Color	Number of Wire Entries	Termination	Terminal Type
Panduit Corp BSN18-3K	Brazed Seam	Fully Insulated	22 AWG	16 AWG	Red	2	Crimp	Butt Splice, Individual Openings, Inline
Panduit Corp BSN18-C		Fully Insulated	22 AWG	17.5 AWG	Red	2	Crimp	Butt Splice, Individual Openings, Inline

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 16-22 AWG Red
