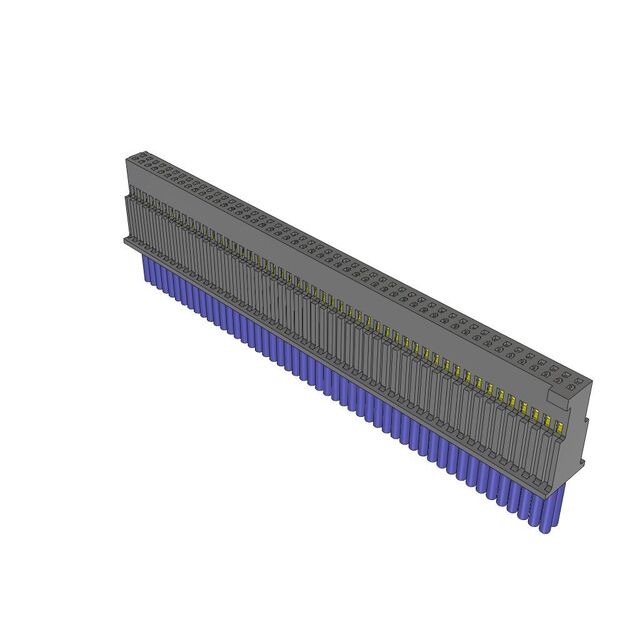

SFSD-50-30-H-03.00-S

Active

Samtec Inc.

.050 SOCKET DISCRETE CABLE ASSEM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SFSD-50-30-H-03.00-S

Active

Samtec Inc.

.050 SOCKET DISCRETE CABLE ASSEM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFSD-50-30-H-03.00-S

Cable Termination	Crimp
Connector Type	Socket to Individual Wire Leads
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length	3 "
Length	76.2 mm
Length	0.25 ft
Number of Positions	100
Number of Rows	2
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

SFSD-50 Series

...

Part	Number of Rows	Contact Finish	Shielding	Cable Termination	Pitch - Connector	Pitch - Connector	Length	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Features	Number of Positions	Length [x]	Length [x]	Length [x]	Color
Samtec Inc. SFSD-50-28-G-08.00-DR-NDX	2	Gold	Unshielded	Crimp	0.05 in	1.27 mm	0.667 ft	8 in	203.2 mm	10 Áin	0.25 Ám	Socket to Socket	Latch Lock Polarizing Key	100
Samtec Inc. SFSD-50-28-G-05.00-D-NUS	2	Gold	Unshielded	Crimp	0.05 in	1.27 mm				10 Áin	0.25 Ám	Socket to Socket	Polarizing Key	100	5 "	127 mm	0.417 '
Samtec Inc. SFSD-50-28-G-14.00-SR	2	Gold	Unshielded	Crimp	0.05 in	1.27 mm	1.17 ft		355.6 mm	10 Áin	0.25 Ám	Socket to Individual Wire Leads	Latch Lock Polarizing Key	100
Samtec Inc. SFSD-50-28C-G-36.00-DR-NDX	2	Gold	Unshielded	Crimp	0.05 in	1.27 mm				10 Áin	0.25 Ám	Socket to Socket	Latch Lock Polarizing Key	100		914.4 mm	3 ft	Individual Multiple
Samtec Inc. SFSD-50-28-H-04.00-SR	2	Gold	Unshielded	Crimp	0.05 in	1.27 mm				30 Áin	0.76 Ám	Socket to Individual Wire Leads	Latch Lock Polarizing Key	100	4 "	101.6 mm	0.333 ft
Samtec Inc. SFSD-50-28-G-03.25-DR-NDS	2	Gold	Unshielded	Crimp	0.05 in	1.27 mm				10 Áin	0.25 Ám	Socket to Socket	Latch Lock Polarizing Key	100	3.25 in	82.55 mm	0.271 ft
Samtec Inc. SFSD-50-28-G-17.70-D-NDX	2	Gold	Unshielded	Crimp	0.05 in	1.27 mm				10 Áin	0.25 Ám	Socket to Socket	Polarizing Key	100
Samtec Inc. SFSD-50-28-G-40.00-D-NUS	2	Gold	Unshielded	Crimp	0.05 in	1.27 mm				10 Áin	0.25 Ám	Socket to Socket	Polarizing Key	100		1.02 m	3.33 '
Samtec Inc. SFSD-50-28-G-10.00-DR-NDS	2	Gold	Unshielded	Crimp	0.05 in	1.27 mm	0.833 ft	10 in	254 mm	10 Áin	0.25 Ám	Socket to Socket	Latch Lock Polarizing Key	100
Samtec Inc. SFSD-50-30-H-03.00-S	2	Gold	Unshielded	Crimp	0.05 in	1.27 mm	0.25 ft	3 "	76.2 mm	30 Áin	0.76 Ám	Socket to Individual Wire Leads	Polarizing Key	100

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.65
		10	$ 23.41

Description

General part information

SFSD-50 Series

100 Position Cable Assembly Rectangular Socket to Individual Wire Leads 0.250' (76.20mm, 3.00")
