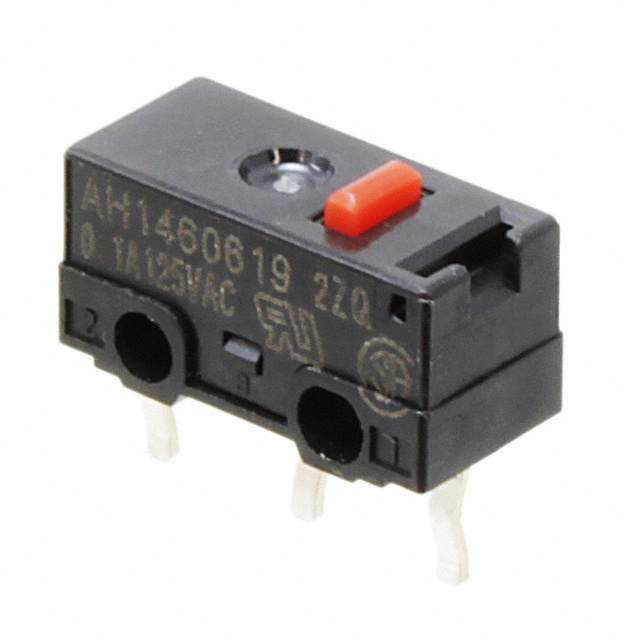

AH1460619-A
ActivePanasonic Electric Works
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
AH1460619-A
ActivePanasonic Electric Works
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AH1460619-A |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA |
| Differential Travel | 0.13 mm |
| Differential Travel | 0.005 in |
| Electrical Life | 100000 Cycles |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 150 gf |
| Operating Position | 0.217 in |
| Operating Position | 5.5 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.25 mm |
| Overtravel | 0.01 in |
| Pretravel | 0.02 in |
| Pretravel | 0.5 mm |
| Release Force | 20 gf |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 50 | $ 1.39 | |
Description
General part information
AH1460619 Series
Switch SPDT Through Hole
