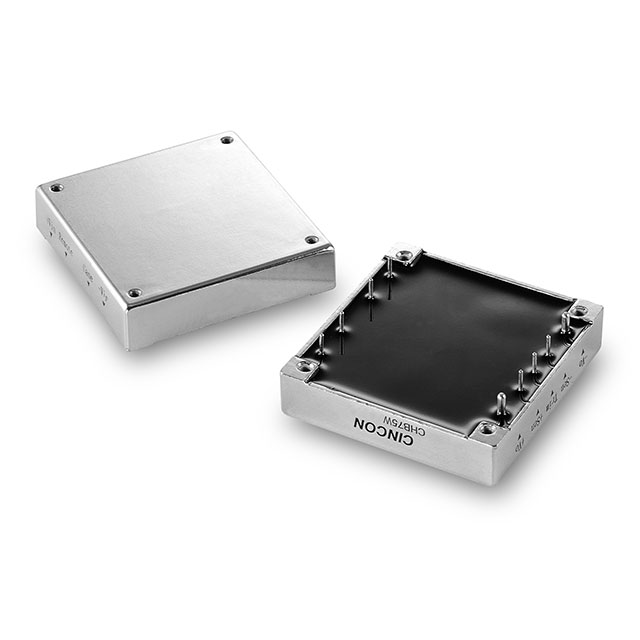

Specification	CHB75W-24S24N

Applications	ITE (Commercial)
Approval Agency	cURus, CE
Control Features	Enable, Active Low
Current - Output (Max)	3.12 A
Efficiency	84 %
Features	OCP, Remote On/Off, OTP, UVLO, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Package / Case	Half Brick
Package Name	Half Brick
Power (Watts)	75 W
Size / Dimension Height	0.5 in
Size / Dimension Length	2.4 in
Size / Dimension Width	2.28 in
Standard Number	60950-1
Type	Isolated Module
Voltage - Input (Max)	36 V
Voltage - Input (Min)	9 V
Voltage - Isolation	1500 Vrns
Voltage - Output 1	24 V

CHB75 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Current - Output (Max)	Number of Outputs	Package / Case	Control Features	Applications	Package Name	Power (Watts)	Efficiency	Voltage - Input (Max)	Standard Number	Approval Agency	Mounting Type	Voltage - Isolation	Features	Voltage - Output 1	Type	Voltage - Input (Min)	DC Voltage - Input (Min)	Input Type	DC Voltage - Input (Max)
Cincon Electronics Co. LTD CHB75W-48S24	-40 °C	100 °C	0.5 in	2.28 in	2.4 in	3.12 A	1	Half Brick	Active High Enable	ITE (Commercial)	Half Brick	75 W	85 %	75 V	60950-1	CE cURus	Through Hole	1500 Vrns	OCP OTP OVP Remote On/Off SCP UVLO	24 V	Isolated Module	18 V
Cincon Electronics Co. LTD CHB75-24S15N	-40 °C	100 °C	0.5 in	2.28 in	2.4 in	5 A	1	Half Brick	Active Low Enable	ITE (Commercial)	Half Brick	75 W	88 %	36 V	60950-1	CE cURus	Through Hole	1500 Vrns	OCP OTP OVP Remote On/Off SCP UVLO	15 V	Isolated Module	18 V
Cincon Electronics Co. LTD CHB75W-24S28-DIN	-40 °C	100 °C	1.03 in	2.54 in	3.98 in	2.67 A	1			ITE (Commercial)		75 W	84 %			CE cURus		1500 Vrns	Adjustable Output Remote On/Off Remote Sense	28 V			9 V	DC	36 V
Cincon Electronics Co. LTD CHB75W-24S24N	-40 °C	100 °C	0.5 in	2.28 in	2.4 in	3.12 A	1	Half Brick	Active Low Enable	ITE (Commercial)	Half Brick	75 W	84 %	36 V	60950-1	CE cURus	Through Hole	1500 Vrns	OCP OTP OVP Remote On/Off SCP UVLO	24 V	Isolated Module	9 V
Cincon Electronics Co. LTD CHB75W-24S15	-40 °C	100 °C	0.5 in	2.28 in	2.4 in	5 A	1	Half Brick	Active High Enable	ITE (Commercial)	Half Brick	75 W	84 %	36 V	60950-1	CE cURus	Through Hole	1500 Vrns	OCP OTP OVP Remote On/Off SCP UVLO	15 V	Isolated Module	9 V
Cincon Electronics Co. LTD CHB75-48S12	-40 °C	100 °C	0.5 in	2.28 in	2.4 in	6.25 A	1	Half Brick	Active High Enable	ITE (Commercial)	Half Brick	75 W	89 %	75 V	60950-1	CE cURus	Through Hole	1500 Vrns	OCP OTP OVP Remote On/Off SCP UVLO	12 V	Isolated Module	36 V
Cincon Electronics Co. LTD CHB75-48S15	-40 °C	100 °C	0.5 in	2.28 in	2.4 in	5 A	1	Half Brick	Active High Enable	ITE (Commercial)	Half Brick	75 W	88 %	75 V	60950-1	CE cURus	Through Hole	1500 Vrns	OCP OTP OVP Remote On/Off SCP UVLO	15 V	Isolated Module	36 V
Cincon Electronics Co. LTD CHB75-12S33	-40 °C	100 °C	0.5 in	2.28 in	2.4 in	15 A	1	Half Brick	Active High Enable	ITE (Commercial)	Half Brick	50 W	78 %	18 V	60950-1	CE cURus	Through Hole	1500 Vrns	OCP OTP OVP Remote On/Off SCP UVLO	3.3 V	Isolated Module	9 V
Cincon Electronics Co. LTD CHB75W-24S12-DIN	-40 °C	100 °C	1.03 in	2.54 in	3.98 in	6.25 A	1			ITE (Commercial)		75 W	83 %			CE cURus		1500 Vrns	Adjustable Output Remote On/Off Remote Sense	12 V			9 V	DC	36 V
Cincon Electronics Co. LTD CHB75W-48S33-CM	-40 °C	100 °C	1.03 in	2.54 in	3.98 in	15 A	1			ITE (Commercial)		50 W	80 %	75 V		CE cURus	Chassis Mount	1500 Vrns		3.3 V	Enclosed	18 V
