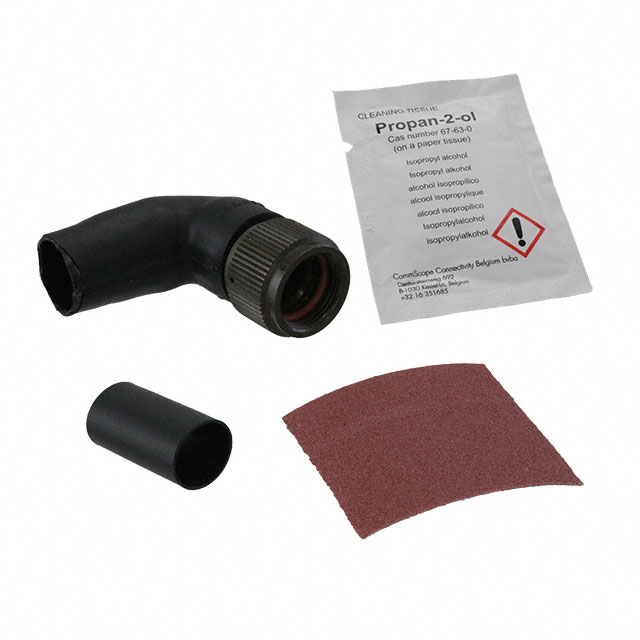

KTKK-1131

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHELL ADPT SZB

Deep-Dive with AI

Search across all available documentation for this part.

KTKK-1131

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHELL ADPT SZB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 444.36
		10	$ 377.79
		25	$ 372.01

Description

General part information

KTKK Series

Connector Backshell, Heat Shrink Adapter B

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KTKK-1131	KTKK Series

	-	-
Cable Exit	90 °	90 - 180 °
Diameter - Outside	-	26.59 mm
Diameter - Outside [diameter]	0.854 in	0.61 - 1.339 in
Diameter - Outside [diameter]	21.7 mm	15.49 - 34 mm
For Use With/Related Products	MIL-C-38999 Series III, IV	MIL-DTL-38999 Series III, IV, MIL-C-38999 Series III, IV, BS9522 F0020 (PATT608) Connectors, BS9522 F0017 (PATT105) Connectors, MIL-C-5015 MS3400 Series
Shell Size - Insert	B	E, D, B, A
Shell Size - Insert	-	10 - 20
Shell Size - Insert	-	8, 8S
Shielding	Shielded	Unshielded, Shielded
Type	Backshell, Heat Shrink Adapter	Backshell, Heat Shrink Adapter

KTKK Series

CONN BACKSHELL ADPT SZE

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert	Cable Exit	For Use With/Related Products	Type	Shielding	Shell Size - Insert	Diameter - Outside	Shell Size - Insert [custom]
TE Connectivity Aerospace, Defense and Marine KTKK-1184	1.256 in	31.9 mm	E	90 °	MIL-DTL-38999 Series III, IV	Backshell, Heat Shrink Adapter	Unshielded
TE Connectivity Aerospace, Defense and Marine KTKK-1114	1.256 in	31.9 mm	E	180 °	MIL-C-38999 Series III, IV	Backshell, Heat Shrink Adapter	Shielded
TE Connectivity Aerospace, Defense and Marine KTKK-1113	1.154 in	29.3 mm	D	180 °	MIL-C-38999 Series III, IV	Backshell, Heat Shrink Adapter	Shielded
TE Connectivity Aerospace, Defense and Marine KTKK-1111	0.854 in	21.7 mm	B	180 °	MIL-C-38999 Series III, IV	Backshell, Heat Shrink Adapter	Shielded
TE Connectivity Aerospace, Defense and Marine KTKK-0446	0.961 in	24.4 mm		180 °	BS9522 F0020 (PATT608) Connectors	Backshell, Heat Shrink Adapter	Shielded	12
TE Connectivity Aerospace, Defense and Marine KTKK-0445	0.843 "	21.4 mm		180 °	BS9522 F0020 (PATT608) Connectors	Backshell, Heat Shrink Adapter	Shielded	10
TE Connectivity Aerospace, Defense and Marine KTKK-1253	1.047 "			90 °	BS9522 F0017 (PATT105) Connectors	Backshell, Heat Shrink Adapter	Shielded	14	26.59 mm
TE Connectivity Aerospace, Defense and Marine KTKK-0846	1.339 in	34 mm		180 °	MIL-C-5015 MS3400 Series	Backshell, Heat Shrink Adapter	Shielded	20
TE Connectivity Aerospace, Defense and Marine KTKK-1131	0.854 in	21.7 mm	B	90 °	MIL-C-38999 Series III, IV	Backshell, Heat Shrink Adapter	Shielded
TE Connectivity Aerospace, Defense and Marine KTKK-0840	0.61 in	15.49 mm		180 °	MIL-C-5015 MS3400 Series	Backshell, Heat Shrink Adapter	Shielded			8, 8S
