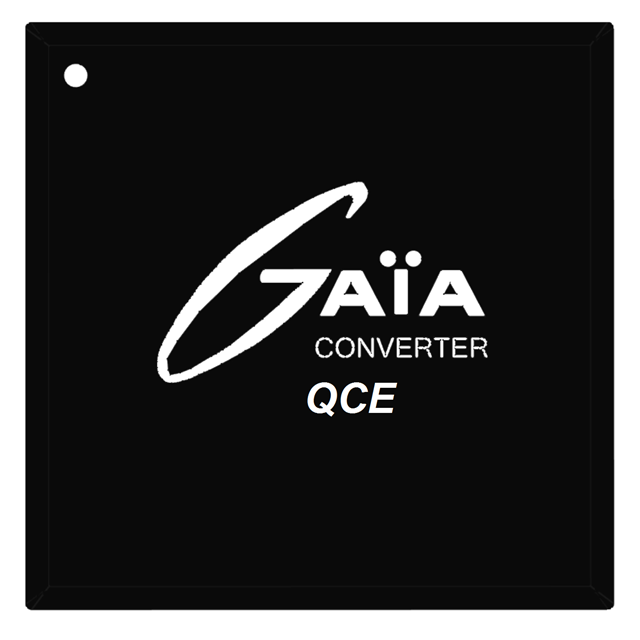

MGDSK25HB

Active

Gaia Converter

DC DC CONVERTER

Search across all available documentation for this part.

Active

Gaia Converter

DC DC CONVERTER

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER

Part	Voltage - Input (Min) [Min]	Power (Watts)	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Efficiency	Applications	Package / Case	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Voltage - Isolation	Number of Outputs	Mounting Type	Type
Gaia Converter MGDSK25HB	9 V	20 W	6 A	-40 °C	203 °F	36 V	87 %	ITE (Commercial)	8-DIP Module	3.3 V	12.7 mm	50.8 mm	0.5 in	2 in	2 in	50.8 mm	Remote On/Off	1.5 kV	1	Through Hole	Isolated Module
Gaia Converter MGDSK25OF	16 V	25 W	1.67 A	-40 °C	203 °F		87 %	ITE (Commercial)	8-DIP Module	15 V	12.7 mm	50.8 mm	0.5 in	2 in	2 in	50.8 mm	Remote On/Off	1.5 kV	1	Through Hole	Isolated Module
Gaia Converter MGDSK25OE	16 V	25 W	2.1 A	-40 °C	203 °F		87 %	ITE (Commercial)	8-DIP Module	12 V	12.7 mm	50.8 mm	0.5 in	2 in	2 in	50.8 mm	Remote On/Off	1.5 kV	1	Through Hole	Isolated Module
Gaia Converter MGDSK25OC	16 V	25 W	5 A	-40 °C	203 °F		87 %	ITE (Commercial)	8-DIP Module	5 V	12.7 mm	50.8 mm	0.5 in	2 in	2 in	50.8 mm	Remote On/Off	1.5 kV	1	Through Hole	Isolated Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3	$ 114.43

General part information

Isolated Module DC DC Converter 1 Output 3.3V 6A 9V - 36V Input
