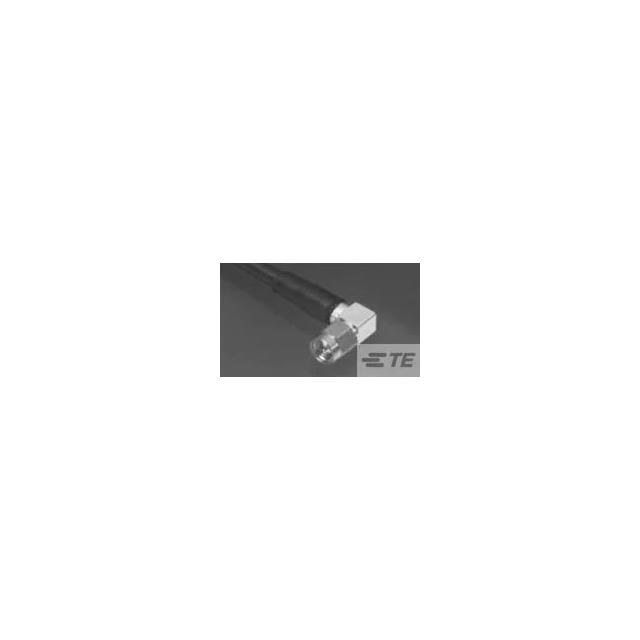

1052179-1

Active

TE CONNECTIVITY

CONNECTORSRF COAX CONNECTORSRF C

Search across all available documentation for this part.

Active

TE CONNECTIVITY

CONNECTORSRF COAX CONNECTORSRF C

Technical Specifications

Parameters and characteristics for this part

Specification	1052179-1

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	196
Cable Group	RG-178
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold, Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	170 V

CONNECTORSRF COAX CONNECTORSRF C

Part	Mounting Type	Center Contact Plating	Voltage Rating	Frequency - Max [Max]	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Shield Termination	Body Material	Connector Type	Cable Group	Cable Group	Center Contact Material	Impedance	Connector Style	Dielectric Material	Contact Termination	Number of Ports
TE CONNECTIVITY 1052179-1	Free Hanging (In-Line), Right Angle	Gold	170 V	12.4 GHz	Gold, Silver	-65 ░C	165 °C	Gold	Solder	Stainless Steel	Male Pin, Plug	196	RG-178	Brass	50 Ohms	SMA	Polytetrafluoroethylene (PTFE)	Solder	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder

Technical documentation and resources

No documents available
