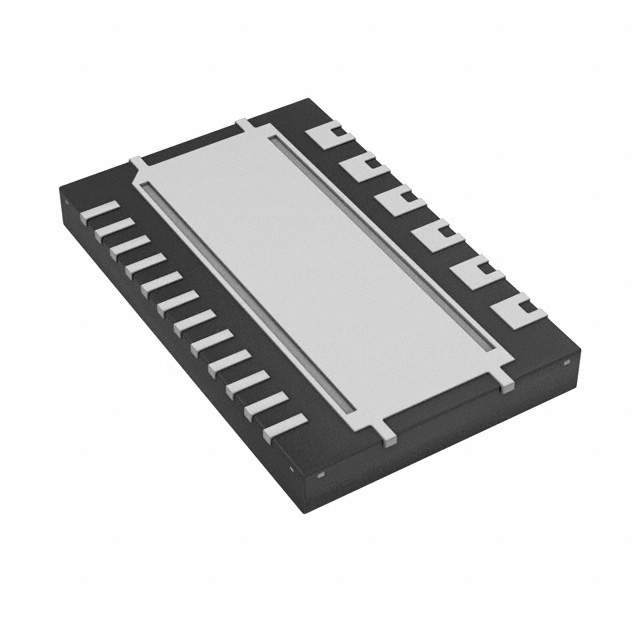

BTS54040LBEAUMA1

Unknown

Infineon Technologies

SPI POWER CONTROLLER FOR ADVANCED FRONT LIGHT CONTROL AUTOMOTIVE AEC-Q100

Search across all available documentation for this part.

Unknown

Infineon Technologies

SPI POWER CONTROLLER FOR ADVANCED FRONT LIGHT CONTROL AUTOMOTIVE AEC-Q100

Technical Specifications

Parameters and characteristics for this part

Specification	BTS54040LBEAUMA1

Current - Output (Max) [Max]	2 A
Fault Protection	Over Temperature, Current Limiting (Fixed), Over Voltage
Grade	Automotive
Interface	SPI
Mounting Type	Surface Mount
Number of Outputs	4
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	24-PowerTDFN
Ratio - Input:Output [custom]	1:2
Rds On (Typ)	39 mOhm
Supplier Device Package	PG-TSON-24-3
Switch Type	General Purpose
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	3.8 V

Part	Current - Output (Max) [Max]	Interface	Fault Protection	Rds On (Typ)	Mounting Type	Supplier Device Package	Switch Type	Output Configuration	Ratio - Input:Output [custom]	Package / Case	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Grade	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Features	Qualification
Infineon Technologies BTS54040LBEAUMA1	2 A	SPI	Current Limiting (Fixed) Over Temperature Over Voltage	39 mOhm	Surface Mount	PG-TSON-24-3	General Purpose	High Side	1:2	24-PowerTDFN	3.8 V	5.5 V	Automotive	N-Channel	150 °C	-40 °C	4
Infineon Technologies BTS54040LBFXUMA1
Infineon Technologies BTS54040LBFAUMA1	2 A	SPI	Current Limiting (Fixed) Over Temperature Over Voltage	39 mOhm	Surface Mount	PG-TSON-24-3	General Purpose	High Side	1:2	24-PowerTDFN	3.8 V	5.5 V	Automotive	N-Channel	150 °C	-40 °C	4
Infineon Technologies BTS54040LBAXUMA1
Infineon Technologies BTS54040LBAAUMA1		SPI	Current Limiting (Fixed) Over Temperature Over Voltage UVLO	39 mOhm	Surface Mount	PG-TSON-24-3	General Purpose	High Side	1:1	24-PowerTDFN	3.8 V	5.5 V	Automotive	N-Channel	150 °C	-40 °C	4	Slew Rate Controlled	AEC-Q100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Switch/Driver 1:2 N-Channel 2A PG-TSON-24-3
