53S102-015N5

Active

Rosenberger

CONN N TYPE PLG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN N TYPE PLG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	53S102-015N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	214, 393, RG-213
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms

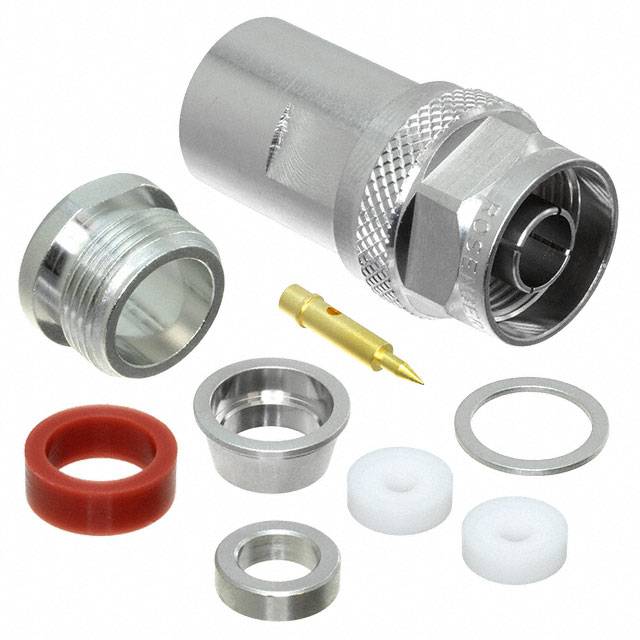

Includes	1 Clamp, 1 Connector, 2 Insulators, 1 Washer, 1 Contact, 1 Nut, 1 Gasket, 1 Sleeve
Ingress Protection	IP67 - Dust Tight, Waterproof
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Dielectric Material	Cable Group	Shield Termination	Contact Termination	Number of Ports	Connector Style	Voltage Rating	Impedance	Body Material	Mating Cycles	Mounting Type	Ingress Protection	Housing Color	Frequency - Max [Max]	Insertion Loss	Center Contact Plating	Center Contact Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Body Finish
Rosenberger 53S102-015N5	Polytetrafluoroethylene (PTFE)	214 393 RG-213	Clamp	Solder	1	N Type	500 V	50 Ohms	Brass	500	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Silver	11 GHz	0.05 dB	Gold	Brass	Male Pin Plug	155 °C	-55 °C	1 Clamp 1 Connector 1 Contact 1 Gasket 1 Nut 1 Sleeve 1 Washer 2 Insulators	White Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
