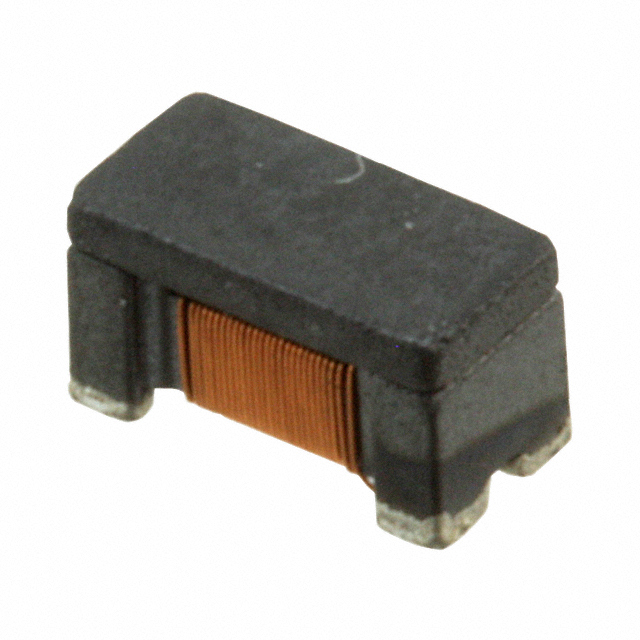

SRF3216-601Y
ActiveBourns Inc.
IND3.2X1.6X2MM,600?25%0.3A,NON-SHDSMD /TAPE & REEL - 7" REEL
Deep-Dive with AI
Search across all available documentation for this part.
SRF3216-601Y
ActiveBourns Inc.
IND3.2X1.6X2MM,600?25%0.3A,NON-SHDSMD /TAPE & REEL - 7" REEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRF3216-601Y |
|---|---|
| Current Rating (Max) [Max] | 300 mA |
| DC Resistance (DCR) (Max) [Max] | 800 mOhm |
| Height (Max) [Max] | 0.087 in |
| Height (Max) [Max] | 2.2 mm |
| Impedance @ Frequency | 600 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4 Lead |
| Package / Case | Horizontal |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.66 | |
| 10 | $ 0.56 | |||
| 25 | $ 0.52 | |||
| 50 | $ 0.47 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.39 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.66 | ||
| 10 | $ 0.56 | |||
| 25 | $ 0.52 | |||
| 50 | $ 0.47 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.39 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.30 | |||
| Tape & Reel (TR) | 2000 | $ 0.30 | ||
| 4000 | $ 0.29 | |||
| 6000 | $ 0.28 | |||
| 10000 | $ 0.27 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 0.33 | |
| 5000 | $ 0.32 | |||
| 10000 | $ 0.30 | |||
| 20000 | $ 0.28 | |||
| 30000 | $ 0.26 | |||
| 50000 | $ 0.25 | |||
Description
General part information
SRF3216 Series
2 Line Common Mode Choke Surface Mount 600 Ohms @ 100 MHz 300mA DCR 800mOhm
