EC0361-000
ActiveTE Connectivity Raychem Cable Protection

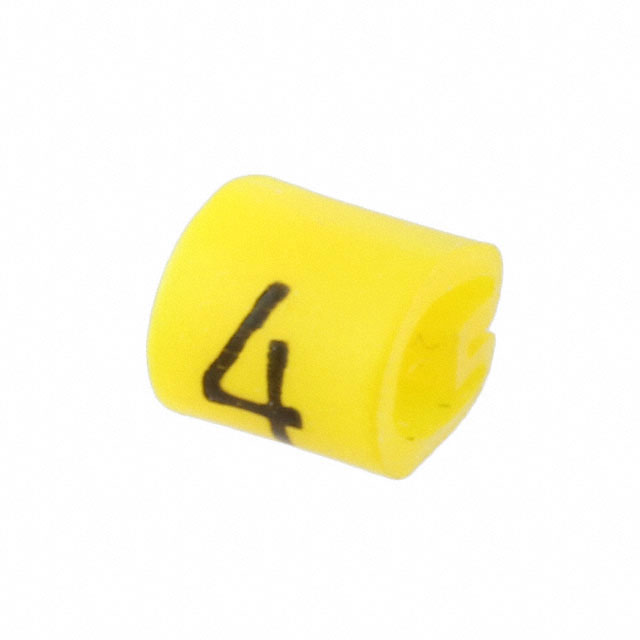

WIRE MARKER PUSH ON 4.5MM YELLOW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EC0361-000
ActiveTE Connectivity Raychem Cable Protection
WIRE MARKER PUSH ON 4.5MM YELLOW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EC0361-000 |
|---|---|
| Cable Diameter [diameter] | 4 mm |
| Cable Diameter [diameter] | 2.5 mm |
| Cable Diameter [diameter] | 0.098 in, 0.157 in |
| Color | Yellow |
| Legend | 4 |
| Material | Poly-Vinyl Chloride (PVC) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -45 °C |
| Size [x] | 0.18 in |
| Size [x] | 4.5 mm |
| Type | Wire Marker, Push On |
EC03 Series
| Part | Cable Diameter [diameter] | Cable Diameter [diameter] | Cable Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Legend | Color | Type | Material | Size [x] | Size [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 4 mm | 2.5 mm | 0.098 in 0.157 in | -45 °C | 70 °C | B | White | Wire Marker Push On | Poly-Vinyl Chloride (PVC) | 0.18 in | 4.5 mm |
TE Connectivity Raychem Cable Protection | 4 mm | 2.5 mm | 0.098 in 0.157 in | -45 °C | 70 °C | White | Wire Marker Push On | Poly-Vinyl Chloride (PVC) | 0.18 in | 4.5 mm | |
TE Connectivity Raychem Cable Protection | 4 mm | 2.5 mm | 0.098 in 0.157 in | -45 °C | 70 °C | 2 | White | Wire Marker Push On | Poly-Vinyl Chloride (PVC) | 0.18 in | 4.5 mm |
TE Connectivity Raychem Cable Protection | 4 mm | 2.5 mm | 0.098 in 0.157 in | -45 °C | 70 °C | 4 | Yellow | Wire Marker Push On | Poly-Vinyl Chloride (PVC) | 0.18 in | 4.5 mm |
TE Connectivity Raychem Cable Protection | 2 mm 3.2 mm | 0.079 in 0.126 in | -45 °C | 70 °C | L | White | Wire Marker Push On | Poly-Vinyl Chloride (PVC) | 0.18 in | 4.5 mm | |
TE Connectivity Raychem Cable Protection | 4 mm | 2.5 mm | 0.098 in 0.157 in | -45 °C | 70 °C | 3 | White | Wire Marker Push On | Poly-Vinyl Chloride (PVC) | 0.18 in | 4.5 mm |
TE Connectivity Raychem Cable Protection | 2 mm 3.2 mm | 0.079 in 0.126 in | -45 °C | 70 °C | 2 | White | Wire Marker Push On | Poly-Vinyl Chloride (PVC) | 0.18 in | 4.5 mm | |
TE Connectivity Raychem Cable Protection | 4 mm | 2.5 mm | 0.098 in 0.157 in | -45 °C | 70 °C | G | White | Wire Marker Push On | Poly-Vinyl Chloride (PVC) | 0.18 in | 4.5 mm |
TE Connectivity Raychem Cable Protection | 2 mm 3.2 mm | 0.079 in 0.126 in | -45 °C | 70 °C | X | White | Wire Marker Push On | Poly-Vinyl Chloride (PVC) | 0.18 in | 4.5 mm | |
TE Connectivity Raychem Cable Protection | 2 mm 3.2 mm | 0.079 in 0.126 in | -45 °C | 70 °C | F | White | Wire Marker Push On | Poly-Vinyl Chloride (PVC) | 0.18 in | 4.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10000 | $ 0.02 | |
Description
General part information
EC03 Series
Wire Marker, Push On 0.18" L (4.5mm) Yellow Poly-Vinyl Chloride (PVC)
