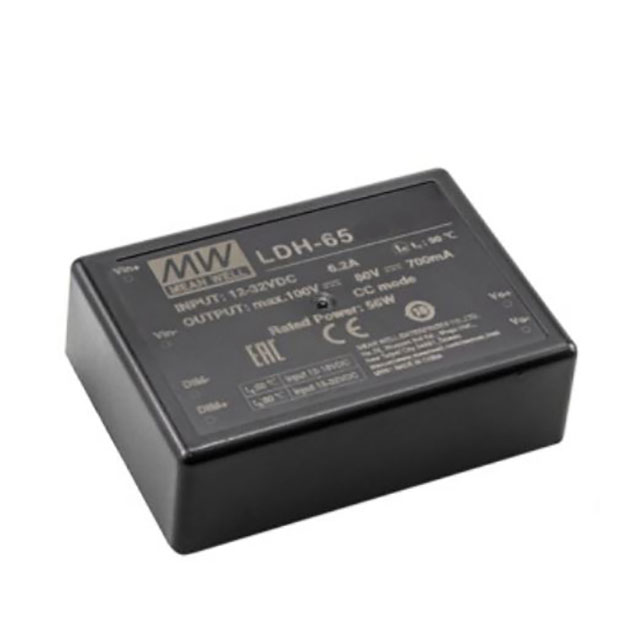

LDH-65-1050

Active

MEAN WELL USA Inc.

LED DRIVER CC BST 12.5-60V 1.05A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LDH-65-1050

Active

MEAN WELL USA Inc.

LED DRIVER CC BST 12.5-60V 1.05A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDH-65-1050

Approval Agency	CE, EAC
Current - Output (Max) [Max]	1.05 A
Dimming	Analog, PWM
Efficiency	95.5 %
Features	SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	63 W
Size / Dimension [x]	75 mm
Size / Dimension [x]	2.95 in
Size / Dimension [y]	2.09 "
Size / Dimension [y]	53 mm
Size / Dimension [z]	22.7 mm
Size / Dimension [z]	0.89 in
Topology	Boost
Type	Constant Current
Voltage - Input (Max) [Max]	32 V
Voltage - Input (Min) [Min]	9.5 V
Voltage - Output [Max]	60 VDC
Voltage - Output [Min]	12.5 V

LDH-65 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Mounting Type	Features	Dimming	Voltage - Input (Max) [Max]	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Number of Outputs	Voltage - Input (Min) [Min]	Efficiency	Current - Output (Max) [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Type	Termination Style	Package / Case
MEAN WELL USA Inc. LDH-65-1050W	-40 °C	60 °C	Boost	Chassis Mount	OVP SCP	Analog PWM	32 V	CE EAC	75 mm	2.09 "	2.95 in	22.7 mm	0.89 in	53 mm	63 W	1	9.5 V	95.5 %	1.05 A	60 VDC	12.5 V	Constant Current	Wire Leads
MEAN WELL USA Inc. LDH-65-1050	-40 °C	60 °C	Boost	Through Hole	OVP SCP	Analog PWM	32 V	CE EAC	75 mm	2.09 "	2.95 in	22.7 mm	0.89 in	53 mm	63 W	1	9.5 V	95.5 %	1.05 A	60 VDC	12.5 V	Constant Current		6-DIP Module
MEAN WELL USA Inc. LDH-65-1750W	-40 °C	60 °C	Boost	Chassis Mount	OVP SCP	Analog PWM	32 V	CE EAC	75 mm	2.09 "	2.95 in	22.7 mm	0.89 in	53 mm	75 W	1	9.5 V	96 %	1.75 A	37 V	12.5 V	Constant Current	Wire Leads
MEAN WELL USA Inc. LDH-65-1400	-40 °C	60 °C	Boost	Through Hole	OVP SCP	Analog PWM	32 V	CE EAC	75 mm	2.09 "	2.95 in	22.7 mm	0.89 in	53 mm	64 W	1	9.5 V	95 %	1.4 A	46 V	12.5 V	Constant Current		6-DIP Module
MEAN WELL USA Inc. LDH-65-700W	-40 °C	60 °C	Boost	Chassis Mount	OVP SCP	Analog PWM	32 V	CE EAC	75 mm	2.09 "	2.95 in	22.7 mm	0.89 in	53 mm	56 W	1	9.5 V	95 %	700 mA	80 VDC	12.5 V	Constant Current	Wire Leads
MEAN WELL USA Inc. LDH-65-1400W	-40 °C	60 °C	Boost	Chassis Mount	OVP SCP	Analog PWM	32 V	CE EAC	75 mm	2.09 "	2.95 in	22.7 mm	0.89 in	53 mm	64 W	1	9.5 V	95 %	1.4 A	46 V	12.5 V	Constant Current	Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.00

Description

General part information

LDH-65 Series

1.05A 12.5 ~ 60V Constant Current LED Driver Boost Topology 1 Output
