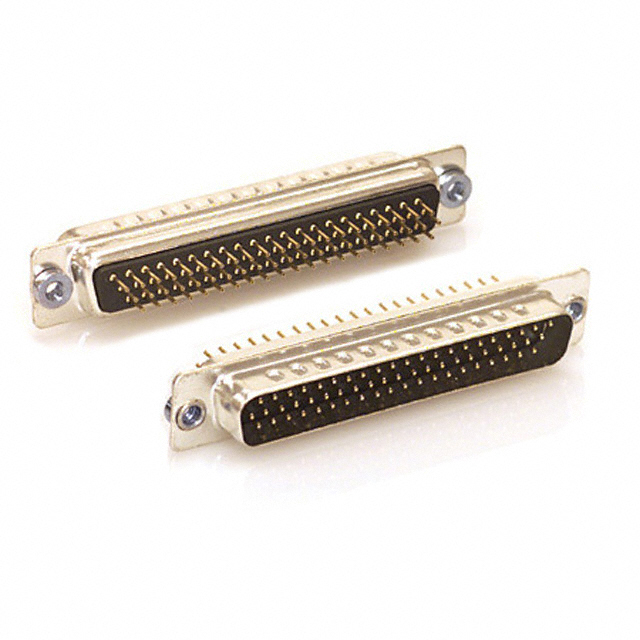

180-062-113R011 - 180-062-112-011,180-062-113R011

180-062-113R011

Active
MH Connectors

D SUB CONNECTOR, 62 CONTACTS, PLUG, THROUGH HOLE, DC, 180 SERIES, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

Documents180-yyy-113Ryy1Datasheet+3
180-062-113R011 - 180-062-112-011,180-062-113R011

180-062-113R011

Active
MH Connectors

D SUB CONNECTOR, 62 CONTACTS, PLUG, THROUGH HOLE, DC, 180 SERIES, STEEL BODY

Deep-Dive with AI

Documents180-yyy-113Ryy1Datasheet+3

Technical Specifications

Parameters and characteristics for this part

Specification180-062-113R011
Connector StyleHigh Density, D-Sub
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)3 A
Dielectric MaterialPolybutylene Terephthalate (PBT)
FeaturesGrounding Indents, Shielded
Flange FeatureBoard Side, 4-40
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Panel Mount
Number of Positions62
Number of Rows3
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout4
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 12.80
10$ 9.83
25$ 8.88
40$ 8.44
80$ 7.84
230$ 7.04
440$ 6.60
945$ 6.13
NewarkEach 10$ 10.60
100$ 8.91
500$ 7.49
1000$ 6.60
5000$ 6.27

Description

General part information

180-062 Series

62 Position D-Sub, High Density Plug, Male Pins Connector
