Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24261MEVM-691 | BQ24261 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion |
| Battery Pack Voltage | - | 3.5 V |
| Charge Current - Max | - | 3 A |
| Current - Charging | - | Constant - Programmable |
| Fault Protection | - | Over Voltage, Over Temperature |
| Function | Battery Charger | Battery Charger |
| Interface | - | I2C |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | DSBGA, 36-UFBGA, 24-VFQFN Exposed Pad |
| Primary Attributes | Li-Ion (1 Cell) | Li-Ion (1 Cell) |
| Programmable Features | - | Current |
| Secondary Attributes | On-Board LEDs | On-Board LEDs |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 36-DSBGA (2.63x2.46), 24-VQFN (4x4) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24261M | BQ24261, BQ24261M |
| Voltage - Supply (Max) | - | 13.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 104.54 | |
BQ24261 Series
1S, 3A, 30V, Single-Input Switchmode Li-Ion Battery Charger with Power Path and USB-OTG
| Part | Number of Cells | Battery Pack Voltage | Battery Chemistry | Operating Temperature [Max] | Operating Temperature [Min] | Programmable Features | Interface | Current - Charging | Package / Case | Voltage - Supply (Max) [Max] | Fault Protection | Charge Current - Max [Max] | Supplier Device Package | Mounting Type | Function | Type | Utilized IC / Part | Supplied Contents | Secondary Attributes | Primary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24261MYFFR | 1 | 3.5 V | Lithium Ion | 85 °C | -40 °C | Current | I2C | Constant - Programmable | 36-UFBGA, DSBGA | 13.2 V | Over Temperature, Over Voltage | 3 A | 36-DSBGA (2.63x2.46) | Surface Mount | ||||||
Texas Instruments BQ24261EVM-079 | Battery Charger | Power Management | BQ24261 | Board(s) | ||||||||||||||||
Texas Instruments BQ24261MYFFT | 1 | 3.5 V | Lithium Ion | 85 °C | -40 °C | Current | I2C | Constant - Programmable | 36-UFBGA, DSBGA | 13.2 V | Over Temperature, Over Voltage | 3 A | 36-DSBGA (2.63x2.46) | Surface Mount | ||||||
Texas Instruments BQ24261RGER | 1 | 3.5 V | Lithium Ion | 85 °C | -40 °C | Current | I2C | Constant - Programmable | 24-VFQFN Exposed Pad | 13.2 V | Over Temperature, Over Voltage | 3 A | 24-VQFN (4x4) | Surface Mount | ||||||
Texas Instruments BQ24261MRGER | 1 | 3.5 V | Lithium Ion | 85 °C | -40 °C | Current | I2C | Constant - Programmable | 24-VFQFN Exposed Pad | 13.2 V | Over Temperature, Over Voltage | 3 A | 24-VQFN (4x4) | Surface Mount | ||||||
Texas Instruments BQ24261YFFR | 1 | 3.5 V | Lithium Ion | 85 °C | -40 °C | Current | I2C | Constant - Programmable | 36-UFBGA, DSBGA | 13.2 V | Over Temperature, Over Voltage | 3 A | 36-DSBGA (2.63x2.46) | Surface Mount | ||||||

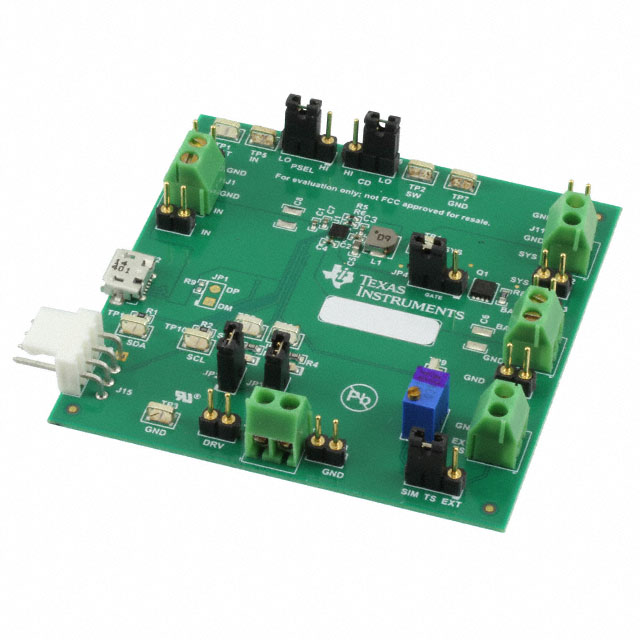

Texas Instruments BQ24261MEVM-691 | Battery Charger | Power Management | BQ24261M | Board(s) | On-Board LEDs | Li-Ion (1 Cell) |
Description
General part information
BQ24261 Series
1S, 3A, 30V, Single-Input Switchmode Li-Ion Battery Charger with Power Path and USB-OTG
