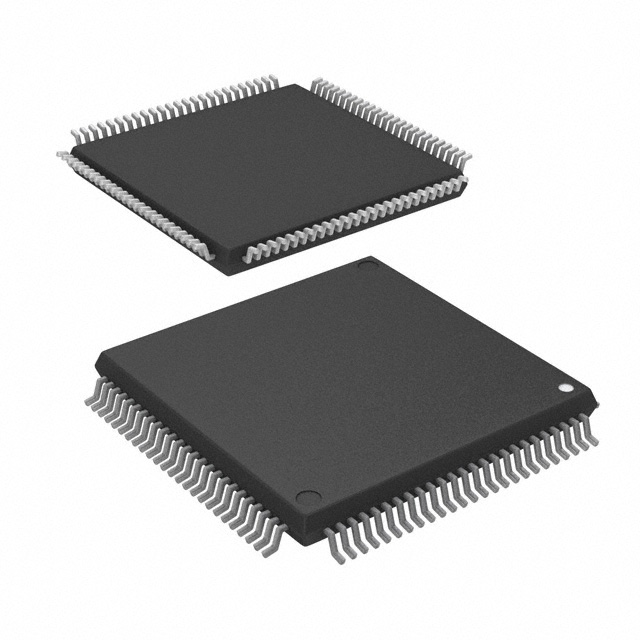

UPD70F3752GC-UEU-AX

Active

Renesas Electronics Corporation

32-BIT MICROCONTROLLERS (NON PROMOTION)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UPD70F3752GC-UEU-AX

Active

Renesas Electronics Corporation

32-BIT MICROCONTROLLERS (NON PROMOTION)

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UPD70F3752GC-UEU-AX

Connectivity	CSI, I2C, UART/USART
Core Processor	V850ES
Core Size	32-Bit Single-Core
Data Converters [custom]	10
Data Converters [custom]	16
Mounting Type	Surface Mount
Number of I/O	84 I/O
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	100-LQFP
Peripherals	WDT, DMA, LVD, PWM
Program Memory Size	256 KB
Program Memory Type	FLASH
RAM Size	16 K
Speed	32 MHz
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	3.7 V

V850ES/Hx3 Series

32-bit Microcontrollers (Non Promotion)

Part	Core Size	Operating Temperature [Max]	Operating Temperature [Min]	Connectivity	Number of I/O	Oscillator Type	Program Memory Type	Program Memory Size	RAM Size	Data Converters [custom]	Data Converters [custom]	Peripherals	Speed	Core Processor	Mounting Type	Package / Case	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]
Renesas Electronics Corporation UPD70F3752GC-UEU-AX	32-Bit Single-Core	85 °C	-40 °C	CSI, I2C, UART/USART	84 I/O	Internal	FLASH	256 KB	16 K	10	16	DMA, LVD, PWM, WDT	32 MHz	V850ES	Surface Mount	100-LQFP	3.7 V	5.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

V850ES/Hx3 Series

The 32-bit V850ES/Hx3 microcontrollers are ideal for applications requiring high performance and multiple peripherals and capable of executing up to 66 Dhrystone MIPS at clock speeds up tp 32MHz.Devices in this lineup use a 5V power supply.
