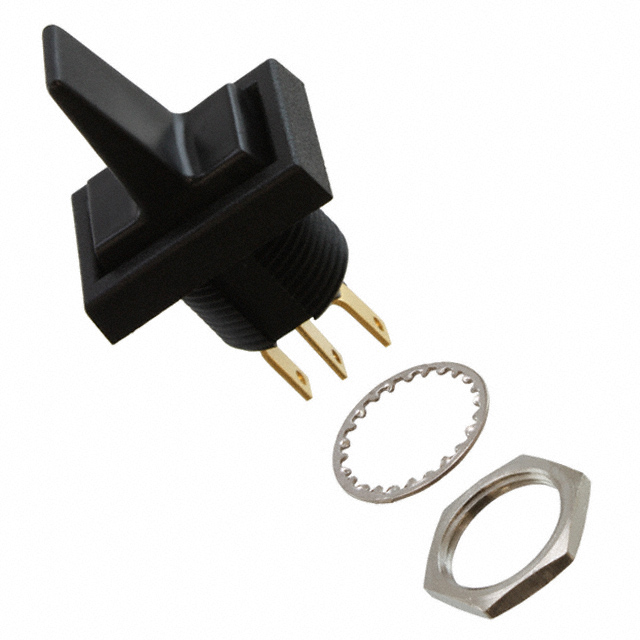

TRD11G20QC

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH ROCKER SPDT 0.4VA 20V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH ROCKER SPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	TRD11G20QC

Actuator Marking	No Marking
Actuator Type	Paddle
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	60000 Cycles
Mounting Type	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	11.9 mm
Switch Function	Mom-Off-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Actuator Type	Voltage Rating - DC	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Termination Style	Circuit	Switch Function	Color - Actuator/Cap	Electrical Life	Actuator Marking	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Raychem Cable Protection TRD11G20QC	Paddle	20 V	0.4 VA	11.9 mm	20 V	Quick Connect - 0.110" (2.8mm)	SPDT	Mom-Off-Mom	Black	60000 Cycles	No Marking	Panel Mount Threaded Body with Nut	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPDT 0.4VA (AC/DC) 20 V Panel Mount, Threaded Body with Nut
