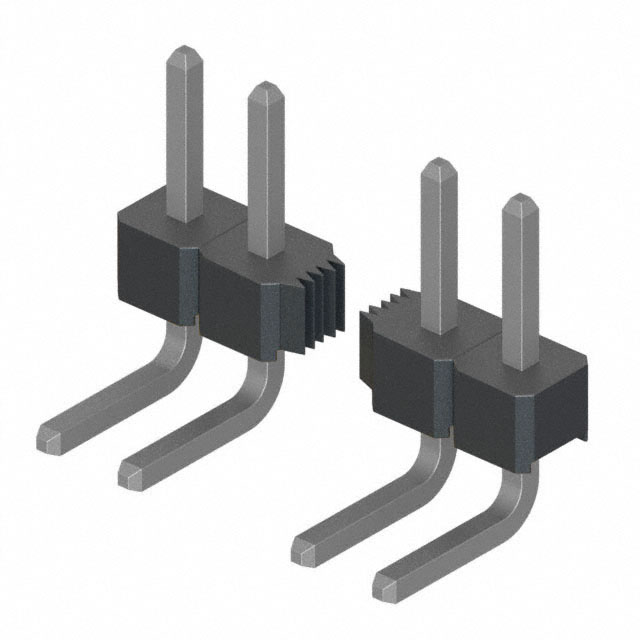

Specification	M22-2030746

Connector Type	Header, Cuttable
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.138 in
Contact Length - Post	0.118 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.079 in
Shrouding	Unshrouded
Style	Board
Termination	Solder

M22-203 Series

Part	Insulation Color	Number of Positions Loaded	Contact Length - Post	Contact Shape	Shrouding	Contact Material	Contact Finish - Mating	Contact Type	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Height	Style	Current Rating (Per Contact)	Fastening Type	Number of Positions	Insulation Material	Termination	Connector Type	Pitch - Mating	Contact Length - Mating	Material Flammability Rating	Number of Rows	Contact Finish - Post
Harwin Inc. M22-2032405	Black	All	0.118 in	Square	Unshrouded	Phosphor Bronze	Gold	Male Pin	Right Angle Through Hole	-55 °C	105 °C	0.079 in	Board	1 A	Push-Pull	24 pos	Nylon 6T Polyamide (PA6T)	Solder	Cuttable Header	0.079 in	0.138 in	UL94 V-0	1
Harwin Inc. M22-2030746	Black	All	0.118 in	Square	Unshrouded	Phosphor Bronze	Tin	Male Pin	Right Angle Through Hole	-55 °C	105 °C	0.079 in	Board	1 A	Push-Pull	7	Nylon 6T Polyamide (PA6T)	Solder	Cuttable Header	0.079 in	0.138 in	UL94 V-0	1	Tin
Harwin Inc. M22-2030646	Black	All	0.118 in	Square	Unshrouded	Phosphor Bronze	Tin	Male Pin	Right Angle Through Hole	-55 °C	105 °C	0.079 in	Board	1 A	Push-Pull	6	Nylon 6T Polyamide (PA6T)	Solder	Cuttable Header	0.079 in	0.138 in	UL94 V-0	1	Tin
Harwin Inc. M22-2030405	Black	All	0.118 in	Square	Unshrouded	Phosphor Bronze	Gold	Male Pin	Right Angle Through Hole	-55 °C	105 °C	0.079 in	Board	1 A	Push-Pull	4	Nylon 6T Polyamide (PA6T)	Solder	Cuttable Header	0.079 in	0.138 in	UL94 V-0	1
Harwin Inc. M22-2031005	Black	All	0.118 in	Square	Unshrouded	Phosphor Bronze	Gold	Male Pin	Right Angle Through Hole	-55 °C	105 °C	0.079 in	Board	1 A	Push-Pull	10	Nylon 6T Polyamide (PA6T)	Solder	Cuttable Header	0.079 in	0.138 in	UL94 V-0	1
Harwin Inc. M22-2030905	Black	All	0.118 in	Square	Unshrouded	Phosphor Bronze	Gold	Male Pin	Right Angle Through Hole	-55 °C	105 °C	0.079 in	Board	1 A	Push-Pull	9	Nylon 6T Polyamide (PA6T)	Solder	Cuttable Header	0.079 in	0.138 in	UL94 V-0	1
Harwin Inc. M22-2030846	Black	All	0.118 in	Square	Unshrouded	Phosphor Bronze	Tin	Male Pin	Right Angle Through Hole	-55 °C	105 °C	0.079 in	Board	1 A	Push-Pull	8	Nylon 6T Polyamide (PA6T)	Solder	Cuttable Header	0.079 in	0.138 in	UL94 V-0	1	Tin
