Q-0B038000H1.5M

Active

Amphenol Custom Cable

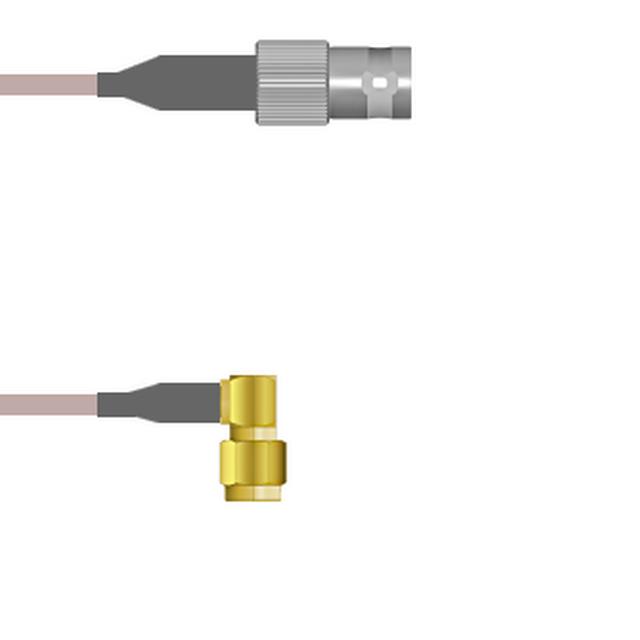

CBL ASSY BNC-SMA JACK-PLUG 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0B038000H1.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JACK-PLUG 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0B038000H1.5M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMA Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0B0380 Series

Part	1st Contact Gender	1st Connector Mounting Type	2nd Connector	2nd Connector Mounting Type	Overall Impedance	Frequency - Max [Max]	Length	Length	Length	Style	1st Connector	Cable Type	2nd Contact Gender	Features	Color	Length [x]	Length [x]
Amphenol Custom Cable Q-0B038000H048i	Female	Free Hanging (In-Line)	SMA Plug Right Angle	Free Hanging (In-Line)	50 Ohms	4 GHz	1200 mm	4 ft	48 in	BNC to SMA	BNC Jack	RG-142	Male	Shielded	Copper
Amphenol Custom Cable Q-0B038000H1.5M	Female	Free Hanging (In-Line)	SMA Plug Right Angle	Free Hanging (In-Line)	50 Ohms	4 GHz	1.5 m	4.9 ft	59.1 in	BNC to SMA	BNC Jack	RG-142	Male	Shielded	Copper
Amphenol Custom Cable Q-0B038000H002M	Female	Free Hanging (In-Line)	SMA Plug Right Angle	Free Hanging (In-Line)	50 Ohms	4 GHz	2 m	6.6 ft	78.7 in	BNC to SMA	BNC Jack	RG-142	Male	Shielded	Copper
Amphenol Custom Cable Q-0B038000H009i	Female	Free Hanging (In-Line)	SMA Plug Right Angle	Free Hanging (In-Line)	50 Ohms	4 GHz	228.6 mm		9 "	BNC to SMA	BNC Jack	RG-142	Male	Shielded	Copper
Amphenol Custom Cable Q-0B038000H0.5M	Female	Free Hanging (In-Line)	SMA Plug Right Angle	Free Hanging (In-Line)	50 Ohms	4 GHz	50 cm		19.69 "	BNC to SMA	BNC Jack	RG-142	Male	Shielded	Copper
Amphenol Custom Cable Q-0B038000H060i	Female	Free Hanging (In-Line)	SMA Plug Right Angle	Free Hanging (In-Line)	50 Ohms	4 GHz	1.5 m	5 ft	5 '	BNC to SMA	BNC Jack	RG-142	Male	Shielded	Copper
Amphenol Custom Cable Q-0B038000H003M	Female	Free Hanging (In-Line)	SMA Plug Right Angle	Free Hanging (In-Line)	50 Ohms	4 GHz	3 m	9.8 '	118.1 in	BNC to SMA	BNC Jack	RG-142	Male	Shielded	Copper
Amphenol Custom Cable Q-0B038000H018i	Female	Free Hanging (In-Line)	SMA Plug Right Angle	Free Hanging (In-Line)	50 Ohms	4 GHz				BNC to SMA	BNC Jack	RG-142	Male	Shielded	Copper	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0B038000H2.5M	Female	Free Hanging (In-Line)	SMA Plug Right Angle	Free Hanging (In-Line)	50 Ohms	4 GHz	2.5 m	8.2 '	98.4 in	BNC to SMA	BNC Jack	RG-142	Male	Shielded	Copper
Amphenol Custom Cable Q-0B038000H084i	Female	Free Hanging (In-Line)	SMA Plug Right Angle	Free Hanging (In-Line)	50 Ohms	4 GHz	2.1 m	7 ft	84 in	BNC to SMA	BNC Jack	RG-142	Male	Shielded	Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 143.01
		25	$ 133.13
		50	$ 123.25
		100	$ 114.77
		250	$ 107.71

Description

General part information

Q-0B0380 Series

Cable Assembly Coaxial BNC to SMA RG-142 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
