115101-06-36.00

Active

Amphenol RF

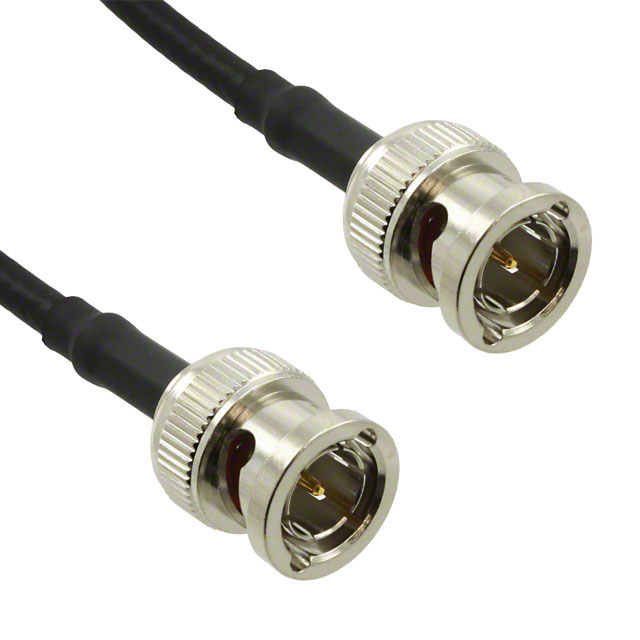

CBL ASSY BNC PLUG TO PLUG 36"

Deep-Dive with AI

Search across all available documentation for this part.

Documents115101-xx Overview

115101-06-36.00

Active

Amphenol RF

CBL ASSY BNC PLUG TO PLUG 36"

Deep-Dive with AI

Documents115101-xx Overview

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	115101-06-36.00

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	75 Ohms
Cable Type	Belden 8218
Color	Black
Connector Impedance	75 Ohms
Features	Shielded
Length	91.44 cm
Length	36 in
Overall Impedance	75 Ohms
Style	BNC to BNC

115101 Series

Part	Length	Length	Length	2nd Connector Mounting Type	1st Connector Mounting Type	Color	1st Contact Gender	Overall Impedance	Cable Impedance	Cable Type	2nd Contact Gender	1st Connector	2nd Connector	Style	Features	Connector Impedance	Frequency - Max [Max]
Amphenol RF 115101-19-M3.00	3 m	118.1 in	9.8 '	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	Male	50 Ohms	50 Ohms	RG-58	Male	BNC Plug	BNC Plug	BNC to BNC
Amphenol RF 115101-19-36.00	91.44 cm	36 in		Free Hanging (In-Line)	Free Hanging (In-Line)	Black	Male	50 Ohms	50 Ohms	RG-58	Male	BNC Plug	BNC Plug	BNC to BNC
Amphenol RF 115101-35-06.00	152.4 mm	6 in		Free Hanging (In-Line)	Free Hanging (In-Line)	Black	Male	75 Ohms	75 Ohms	Belden 179DT	Male	BNC Plug	BNC Plug	BNC to BNC	Shielded	75 Ohms	4 GHz
Amphenol RF 115101-35-48.00	1200 mm	48 in	4 ft	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	Male	75 Ohms	75 Ohms	Belden 179DT	Male	BNC Plug	BNC Plug	BNC to BNC	Shielded	75 Ohms	4 GHz
Amphenol RF 115101-19-M20.0	20 m	787.4 "	65.6 '	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	Male	50 Ohms	50 Ohms	RG-58	Male	BNC Plug	BNC Plug	BNC to BNC
Amphenol RF 115101-35-M3.00	3 m	118.1 in	9.8 '	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	Male	75 Ohms	75 Ohms	Belden 179DT	Male	BNC Plug	BNC Plug	BNC to BNC	Shielded	75 Ohms	4 GHz
Amphenol RF 115101-19-M2.00	2 m	78.7 in	6.6 ft	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	Male	50 Ohms	50 Ohms	RG-58	Male	BNC Plug	BNC Plug	BNC to BNC
Amphenol RF 115101-06-36.00	91.44 cm	36 in		Free Hanging (In-Line)	Free Hanging (In-Line)	Black	Male	75 Ohms	75 Ohms	Belden 8218	Male	BNC Plug	BNC Plug	BNC to BNC	Shielded	75 Ohms
Amphenol RF 115101-20-M1.00	1 m	39.4 in	3.3 ft	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	Male	75 Ohms	75 Ohms	RG-59	Male	BNC Plug	BNC Plug	BNC to BNC
Amphenol RF 115101-06-12.00	304.8 mm	12 "		Free Hanging (In-Line)	Free Hanging (In-Line)	Black	Male	75 Ohms	75 Ohms	Belden 8218	Male	BNC Plug	BNC Plug	BNC to BNC	Shielded	75 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.39
		10	$ 18.73
		25	$ 17.93
		50	$ 17.35
		100	$ 16.77
		250	$ 15.84
		500	$ 15.38

Description

General part information

115101 Series

Cable Assembly Coaxial BNC to BNC Belden 8218 36.00" (914.40mm)

Documents

Technical documentation and resources

115101-xx Overview

Datasheet
