132255-12

Active

Amphenol RF

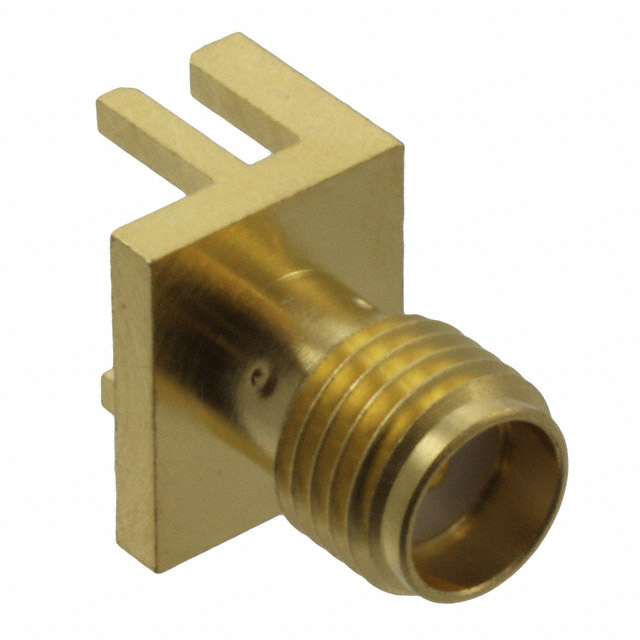

CONN SMA RCPT STR 50OHM EDGE MNT

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMA RCPT STR 50OHM EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	132255-12

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Shield Termination	Frequency - Max [Max]	Impedance	Dielectric Material	Mating Cycles	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Connector Type	Center Contact Material	Body Finish	Body Material	Mounting Type	Contact Termination	Number of Ports	Center Contact Plating	Voltage Rating
Amphenol RF 132255-12	Solder	18 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	500	Gold	-65 ░C	165 °C	SMA	Female Socket Receptacle	Beryllium Copper	Gold	Brass	Board Edge End Launch	Solder	1	Gold
Amphenol RF 132255RP	Solder	18 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	500	Gold	-65 ░C	165 °C	RP-SMA	Jack Male Pin	Beryllium Copper	Gold	Brass	Board Edge End Launch	Solder	1	Gold	375 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Solder
