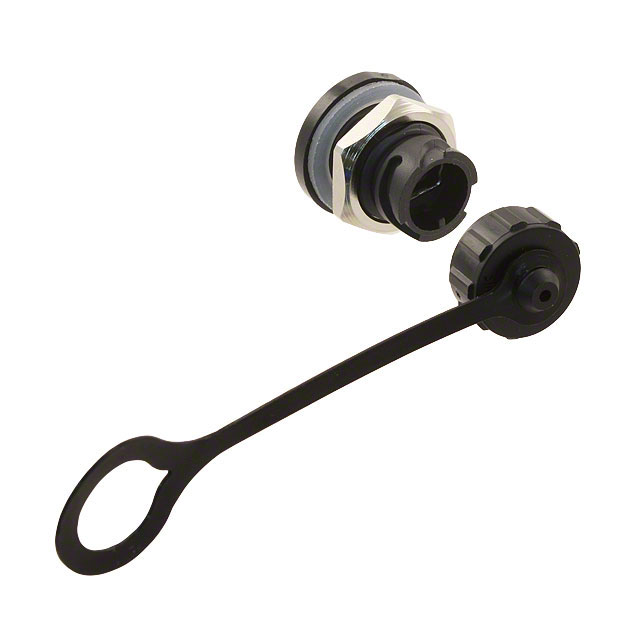

17-250021

Active

Amphenol CONEC

CONN RCPT USB2.0 MINI B PNL MNT

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN RCPT USB2.0 MINI B PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	17-250021

Connector Type	USB - mini B
Contact Finish	Gold
Features	Cover, Circular Bayonet Coupling
Gender	Receptacle
Ingress Protection	IP67 - Dust Tight, Waterproof
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Copper Alloy
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder

Part	Shell/Shielding Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Ingress Protection	Termination	Number of Contacts	Shielding	Contact Finish	Specifications	Gender	Mounting Feature	Material Flammability Rating	Number of Ports	Insulation Color	Configuration	Color	Wire Gauge	Wire Gauge	Transfer Rate	Length [x]	Length [x]	Accessory Type	For Use With/Related Products
Amphenol CONEC 17-250021	Copper Alloy	USB - mini B	85 °C	-40 °C	Circular Bayonet Coupling Cover	IP67 - Dust Tight Waterproof	Solder	5	Shielded	Gold	USB 2.0	Receptacle	Bulkhead - Front Side Nut	UL94 V-0	1	Black
Amphenol CONEC 17-250051					Data Transfer and Charge Industrial Environments				Shielded		USB 2.0						A Male to Mini B Male (Circular Coupling)	Black	28 AWG	28 AWG	480 Mbps
Amphenol CONEC 17-250041					Data Transfer and Charge Industrial Environments				Shielded		USB 2.0						A Male to Mini B Male (Circular Coupling)	Black	28 AWG	28 AWG	480 Mbps	9.84 ft	3 m
Amphenol CONEC 17-250001	Copper Alloy	USB - mini B	85 °C	-40 °C	Circular Bayonet Coupling	IP67 - Dust Tight Waterproof	Solder	5	Shielded	Gold	USB 2.0	Receptacle	Bulkhead - Front Side Nut	UL94 V-0	1	Black
Amphenol CONEC 17-250031					Data Transfer and Charge Industrial Environments				Shielded		USB 2.0						A Male to Mini B Male (Circular Coupling)	Black	28 AWG	28 AWG	480 Mbps	6.56 ft	2 m
Amphenol CONEC 17-250010																								Cover	miniUSB AB miniUSB B USB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - mini B USB 2.0 Receptacle Connector 5 Position Panel Mount
