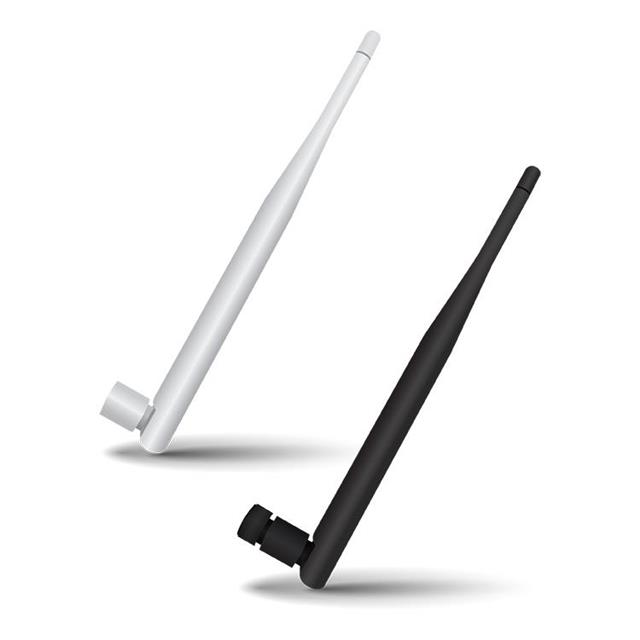

X9000984-4GDSMW

Active

KYOCERA AVX

RF ANTENNA SMA MALE WHITE

Search across all available documentation for this part.

Active

KYOCERA AVX

RF ANTENNA SMA MALE WHITE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA LoRa, LPWAN, LTE, Sigfox Whip, Tilt SMA Male Connector Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	X9000984-4GDSMW	X9000984 Series

Antenna Type	Tilt, Whip	Tilt, Whip
Applications	Sigfox, LTE, LoRa, LPWAN	Cellular, 4G, LTE-M, NB-IoT, Sigfox, LTE Cat 1, LoRa, LTE, LPWAN
Frequency (Center/Band)	875 MHz, 2.2 GHz	2.2 - 875 MHz
Frequency Group [Max]	1 GHz, 3 GHz	1 - 3 GHz
Frequency Group [Min]	300 MHz, 2 GHz	2 - 300 MHz
Frequency Range [Max]	960 MHz, 2.69 GHz	2.69 - 960 MHz
Frequency Range [Min]	790 MHz, 1.71 GHz	1.71 - 790 MHz
Gain	2.2 dBi, 4.7 dBi, 3.8 dBi, 3.4 dBi	2.2 - 4.7 dBi
Mounting Type	Connector Mount	Connector Mount
Number of Bands	2	2
Return Loss	-6 dB, -5 dB, -4 dB	-6 - -4 dB
RF Family/Standard	Cellular	WiFi, Bluetooth, 802.15.4, Cellular
Termination	-	RP-SMA Male

ANTENNA WHIP HINGED, 4G WHITE RP

Part	RF Family/Standard	Mounting Type	Termination	Antenna Type	Frequency Group [Min]	Frequency Group [Max]	Frequency (Center/Band)	Applications	Number of Bands	Frequency Range [Max]	Frequency Range [Min]	Gain	Return Loss
KYOCERA AVX X9000984-4GDRMW	802.15.4, Bluetooth, WiFi	Connector Mount	RP-SMA Male	Tilt, Whip	2 GHz, 300 MHz	1 GHz, 3 GHz	2.2 GHz, 875 MHz	4G, Cellular, LoRa, LTE Cat 1, LTE-M, NB-IoT, Sigfox	2	2.69 GHz, 960 MHz	1.71 GHz, 790 MHz	2.2 dBi, 3.4 dBi, 3.8 dBi, 4.7 dBi	-6 dB, -5 dB, -4 dB
KYOCERA AVX X9000984-4GDSMB	Cellular	Connector Mount		Tilt, Whip	2 GHz, 300 MHz	1 GHz, 3 GHz	2.2 GHz, 875 MHz	LoRa, LPWAN, LTE, Sigfox	2	2.69 GHz, 960 MHz	1.71 GHz, 790 MHz	2.2 dBi, 3.4 dBi, 3.8 dBi, 4.7 dBi	-6 dB, -5 dB, -4 dB
KYOCERA AVX X9000984-4GDSMW	Cellular	Connector Mount		Tilt, Whip	2 GHz, 300 MHz	1 GHz, 3 GHz	2.2 GHz, 875 MHz	LoRa, LPWAN, LTE, Sigfox	2	2.69 GHz, 960 MHz	1.71 GHz, 790 MHz	2.2 dBi, 3.4 dBi, 3.8 dBi, 4.7 dBi	-6 dB, -5 dB, -4 dB
