928885-3

Active

TE Connectivity AMP Connectors

FAH-FAST STECKH2,8

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

FAH-FAST STECKH2,8

Technical Specifications

Parameters and characteristics for this part

Specification	928885-3

Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [Max] [diameter]	0.106 "
Insulation Diameter [Max] [diameter]	2.69 mm
Insulation Diameter [Min] [diameter]	2 mm
Insulation Diameter [Min] [diameter]	0.079 in
Mounting Type	Free Hanging (In-Line), Right Angle
Tab Length	0.181 "
Tab Length	4.6 mm
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	2.79 mm
Tab Width	0.11 "
Terminal Type	Flag, Angled - 90°
Termination	Crimp
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	17 AWG

FAH-FAST STECKH2,8

Part	Wire Gauge [Min]	Wire Gauge [Max]	Tab Width	Tab Width	Terminal Type	Tab Length	Tab Length	Termination	Contact Material	Gender	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Mounting Type	Insulation	Tab Thickness	Tab Thickness
TE Connectivity AMP Connectors 928885-3	17 AWG	20 AWG	2.79 mm	0.11 "	Angled - 90°, Flag	0.181 "	4.6 mm	Crimp	Brass	Female	0.106 "	2.69 mm	2 mm	0.079 in	Free Hanging (In-Line), Right Angle	Non-Insulated	0.02 "	0.51 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30000	$ 0.14

General part information

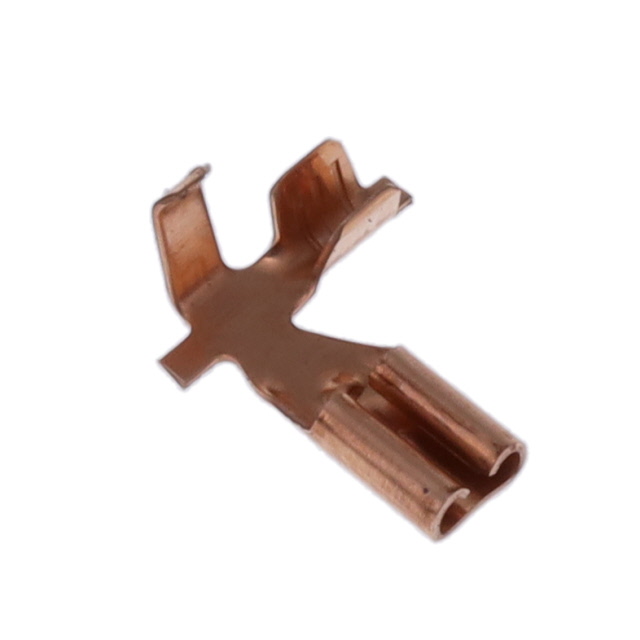

0.110" (2.79mm) Quick Connect Female 17-20 AWG Crimp Connector Non-Insulated
