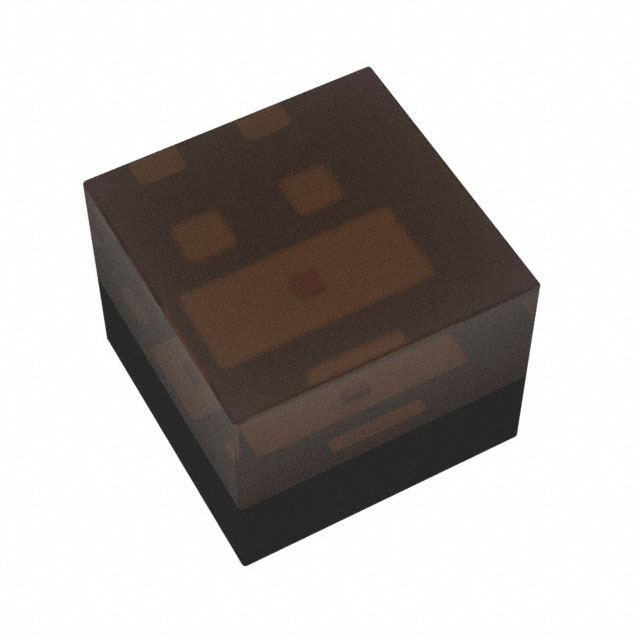

SML-LX0303SIUPGUSB

Active

Lumex Opto/Components Inc.

LED RGB CLEAR 4SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED RGB CLEAR 4SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SML-LX0303SIUPGUSB

Color	Red, Green, Blue
Configuration	Common Anode
Current - Test	5 mA, 3 mA, 5 mA
Height (Max) [Max]	0.9 mm
Lens Color	Clear
Lens Size	0.8 mm
Lens Style	Square with Flat Top
Lens Transparency	Clear
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension [x]	0.8 mm
Size / Dimension [y]	0.8 mm
Supplier Device Package	4-SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) [custom]	2 V
Voltage - Forward (Vf) (Typ) [custom]	2.9 V
Voltage - Forward (Vf) (Typ) [custom]	2.9 V
Wavelength - Peak [custom]	525 nm
Wavelength - Peak [custom]	465 nm
Wavelength - Peak [custom]	625 nm

LED RGB CLEAR 4SMD

Part	Color	Lens Style	Supplier Device Package	Package / Case	Configuration	Viewing Angle	Lens Color	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Height (Max) [Max]	Current - Test	Lens Size	Lens Transparency	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type
Lumex Opto/Components Inc. SML-LX0303SIUPGUSB	Blue, Green, Red	Square with Flat Top	4-SMD	4-SMD, No Lead	Common Anode	120 °	Clear	525 nm	465 nm	625 nm	0.9 mm	3 mA, 5 mA, 5 mA	0.8 mm	Clear	2 V	2.9 V	2.9 V	0.8 mm	0.8 mm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red, Green, Blue (RGB) LED Indication - Discrete 2V Red, 2.9V Green, 2.9V Blue 4-SMD, No Lead
