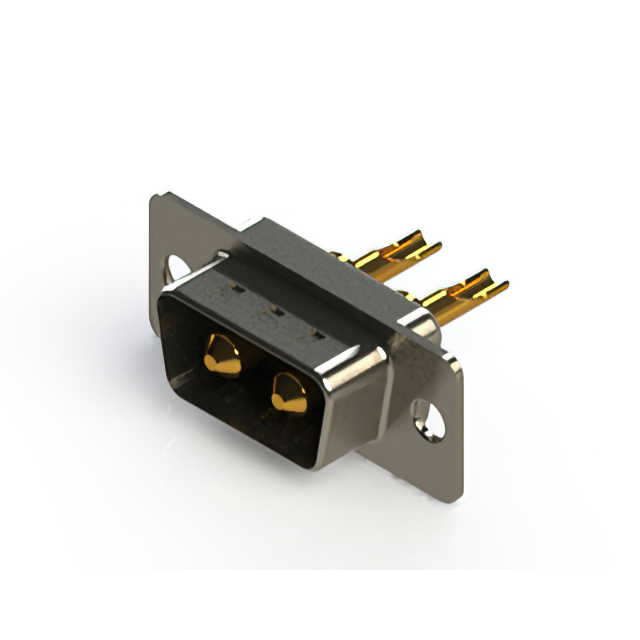

627-2W2-622-1N1

Active

EDAC Inc.

CONN D-SUB PLUG 2POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-2W2-622-1N1

Active

EDAC Inc.

CONN D-SUB PLUG 2POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-2W2-622-1N1

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	10 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2WK2, 1 (DE, E), 2V2, 2W2C, 2W2
Voltage Rating	125 VDC

627-2W2 Series

...

Part	Contact Type	Flange Feature	Number of Positions	Connector Type	Voltage Rating	Termination	Shell Material, Finish	Color	Number of Rows	Current Rating (Amps)	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Dielectric Material	Contact Finish	Shell Size, Connector Layout	Mounting Type	Contact Material	Connector Style	Features	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 627-2W2-224-4N6	Power	4-40	2	Male Pins Plug	125 VDC	Solder	Nickel Plated Steel	Black	1	40 A	Flash	-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Gold	1 (DE E) 2V2 2W2 2W2C 2WK2	Panel Mount Through Hole	Copper Alloy	Combo D-Sub	Board Lock Grounding Indents Shielded
EDAC Inc. 627-2W2-622-1T2	Power	4-40 Board Side	2	Male Pins Plug	125 VDC			Black	1	10 A		-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Gold	1 (DE E) 2V2 2W2 2W2C 2WK2	Free Hanging (In-Line)	Copper Alloy	Combo D-Sub	Grounding Indents Shielded	0.76 Ám	30 Áin
EDAC Inc. 627-2W2-622-2N2	Power	4-40 Board Side	2	Male Pins Plug	125 VDC		Nickel Plated Steel	Black	1	20 A		-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Gold	1 (DE E) 2V2 2W2 2W2C 2WK2	Free Hanging (In-Line)	Copper Alloy	Combo D-Sub	Grounding Indents Shielded	0.76 Ám	30 Áin
EDAC Inc. 627-2W2-222-1T1	Power	Housing/Shell (Unthreaded)	2	Male Pins Plug	125 VDC			Black	1	10 A	Flash	-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Gold	1 (DE E) 2V2 2W2 2W2C 2WK2	Free Hanging (In-Line)	Copper Alloy	Combo D-Sub	Grounding Indents Shielded
EDAC Inc. 627-2W2-622-4T1	Power	Housing/Shell (Unthreaded)	2	Male Pins Plug	125 VDC			Black	1	40 A		-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Gold	1 (DE E) 2V2 2W2 2W2C 2WK2	Free Hanging (In-Line)	Copper Alloy	Combo D-Sub	Grounding Indents Shielded	0.76 Ám	30 Áin
EDAC Inc. 627-2W2-622-4NA	Power	Board Side (M3)	2	Male Pins Plug	125 VDC		Nickel Plated Steel	Black	1	40 A		-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Gold	1 (DE E) 2V2 2W2 2W2C 2WK2	Free Hanging (In-Line)	Copper Alloy	Combo D-Sub	Grounding Indents Shielded	0.76 Ám	30 Áin
EDAC Inc. 627-2W2-224-4NA	Power	Board Side (M3)	2	Male Pins Plug	125 VDC	Solder	Nickel Plated Steel	Black	1	40 A	Flash	-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Gold	1 (DE E) 2V2 2W2 2W2C 2WK2		Copper Alloy	Combo D-Sub	Grounding Indents Shielded
EDAC Inc. 627-2W2-624-1NB	Power	Board Side (M3)	2	Male Pins Plug	125 VDC	Solder	Nickel Plated Steel	Black	1	10 A		-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Gold	1 (DE E) 2V2 2W2 2W2C 2WK2		Copper Alloy	Combo D-Sub	Grounding Indents Shielded	0.76 Ám	30 Áin
EDAC Inc. 627-2W2-224-2N5	Power	4-40 Board Side	2	Male Pins Plug	125 VDC	Solder	Nickel Plated Steel	Black	1	20 A	Flash	-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Gold	1 (DE E) 2V2 2W2 2W2C 2WK2	Through Hole	Copper Alloy	Combo D-Sub	Board Lock Grounding Indents Shielded
EDAC Inc. 627-2W2-622-1N1	Power	Housing/Shell (Unthreaded)	2	Male Pins Plug	125 VDC		Nickel Plated Steel	Black	1	10 A		-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Gold	1 (DE E) 2V2 2W2 2W2C 2WK2	Free Hanging (In-Line)	Copper Alloy	Combo D-Sub	Grounding Indents Shielded	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 9.25

Description

General part information

627-2W2 Series

2 (Power) Position D-Sub, Combo Plug, Male Pins Connector
