R141331500

Active

Radiall USA, Inc.

BNC / STRAIGHT BULKHEAD JACK PAN

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC / STRAIGHT BULKHEAD JACK PAN

Technical Specifications

Parameters and characteristics for this part

Specification	R141331500

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Contact Termination	Dielectric Material	Center Contact Plating	Mating Cycles	Fastening Type	Center Contact Material	Voltage Rating	Body Finish	Mounting Feature	Shield Termination	Frequency - Max [Max]	Number of Ports	Body Material	Housing Color	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Connector Style	Cable Group
Radiall USA, Inc. R141331500	Crimp	Polytetrafluoroethylene (PTFE)	Gold	500	Bayonet Lock	Beryllium Copper	500 V	Nickel	Bulkhead - Front Side Nut	Crimp	4 GHz	1	Brass	Silver	50 Ohms	-65 ░C	165 °C	Female Socket Jack	BNC	316 RG-174

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

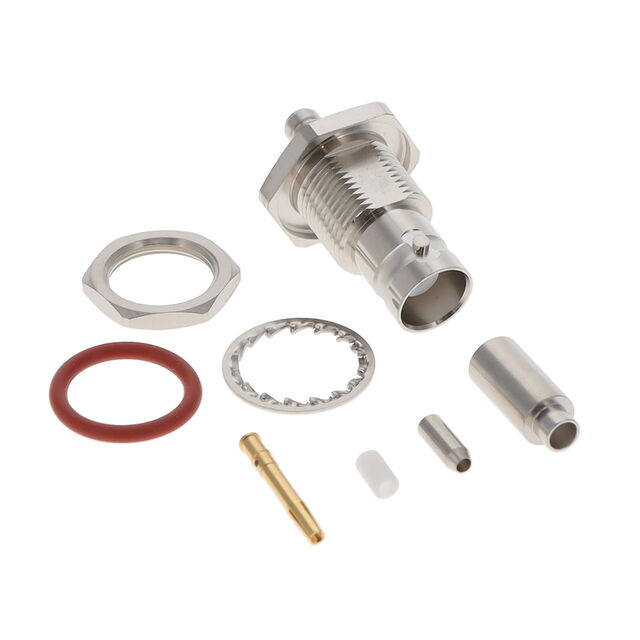

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
