111-43-328-41-001000

Active

Mill-Max Manufacturing Corp.

CONN IC SKT DBL

Deep-Dive with AI

Search across all available documentation for this part.

111-43-328-41-001000

Active

Mill-Max Manufacturing Corp.

CONN IC SKT DBL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	111-43-328-41-001000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Contact Resistance	10 mOhm
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	28
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	4.32 mm
Termination Post Length	0.17 in
Type	0.3 "
Type	7.62 mm
Type	DIP

111-43 Series

Part	Contact Material - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Features	Contact Finish - Mating	Termination	Housing Material	Contact Material - Mating	Contact Resistance	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Material Flammability Rating	Type	Type	Type	Pitch - Post	Pitch - Post	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid)
Mill-Max Manufacturing Corp. 111-43-950-61-001000	Brass Alloy	200 µin	5.08 µm	Through Hole	Open Frame	Gold	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 mOhm	25	2	50	0.1 in	2.54 mm	3 A	-55 °C	125 °C	30 Áin	0.76 Ám	Tin	UL94 V-0	22.86 mm	DIP	0.9 in	2.54 mm	0.1 in	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 111-43-628-61-001000	Brass Alloy	200 µin	5.08 µm	Through Hole	Open Frame	Gold	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 mOhm				0.1 in	2.54 mm	3 A	-55 °C	125 °C	30 Áin	0.76 Ám	Tin	UL94 V-0	15.24 mm	DIP	0.6 in	2.54 mm	0.1 in	3.18 mm	0.125 in	28
Mill-Max Manufacturing Corp. 111-43-308-61-001000	Brass Alloy	200 µin	5.08 µm	Through Hole	Open Frame	Gold	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 mOhm				0.1 in	2.54 mm	3 A	-55 °C	125 °C	30 Áin	0.76 Ám	Tin	UL94 V-0	7.62 mm	DIP	0.3 "	2.54 mm	0.1 in	3.18 mm	0.125 in	8
Mill-Max Manufacturing Corp. 111-43-624-61-001000	Brass Alloy	200 µin	5.08 µm	Through Hole	Open Frame	Gold	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 mOhm				0.1 in	2.54 mm	3 A	-55 °C	125 °C	30 Áin	0.76 Ám	Tin	UL94 V-0	15.24 mm	DIP	0.6 in	2.54 mm	0.1 in	3.18 mm	0.125 in	24
Mill-Max Manufacturing Corp. 111-43-628-41-001000	Brass Alloy	200 µin	5.08 µm	Through Hole	Open Frame	Gold	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper					0.1 in	2.54 mm	3 A	-55 °C	125 °C	30 Áin	0.76 Ám	Tin		15.24 mm	DIP	0.6 in	2.54 mm	0.1 in	3.18 mm	0.125 in	28
Mill-Max Manufacturing Corp. 111-43-314-61-001000	Brass Alloy	200 µin	5.08 µm	Through Hole	Open Frame	Gold	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 mOhm				0.1 in	2.54 mm	3 A	-55 °C	125 °C	30 Áin	0.76 Ám	Tin	UL94 V-0	7.62 mm	DIP	0.3 "	2.54 mm	0.1 in	3.18 mm	0.125 in	14
Mill-Max Manufacturing Corp. 111-43-328-41-001000	Brass Alloy	200 µin	5.08 µm	Through Hole	Open Frame	Gold	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 mOhm				0.1 in	2.54 mm	3 A	-55 °C	125 °C	30 Áin	0.76 Ám	Tin	UL94 V-0	7.62 mm	DIP	0.3 "	2.54 mm	0.1 in	4.32 mm	0.17 in	28
Mill-Max Manufacturing Corp. 111-43-424-61-001000	Brass Alloy	200 µin	5.08 µm	Through Hole	Open Frame	Gold	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 mOhm				0.1 in	2.54 mm	3 A	-55 °C	125 °C	30 Áin	0.76 Ám	Tin	UL94 V-0	10.16 mm	DIP	0.4 in	2.54 mm	0.1 in	3.18 mm	0.125 in	24
Mill-Max Manufacturing Corp. 111-43-422-61-001000	Brass Alloy	200 µin	5.08 µm	Through Hole	Open Frame	Gold	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 mOhm				0.1 in	2.54 mm	3 A	-55 °C	125 °C	30 Áin	0.76 Ám	Tin	UL94 V-0	10.16 mm	DIP	0.4 in	2.54 mm	0.1 in	3.18 mm	0.125 in	22
Mill-Max Manufacturing Corp. 111-43-322-61-001000	Brass Alloy	200 µin	5.08 µm	Through Hole	Open Frame	Gold	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 mOhm				0.1 in	2.54 mm	3 A	-55 °C	125 °C	30 Áin	0.76 Ám	Tin	UL94 V-0	7.62 mm	DIP	0.3 "	2.54 mm	0.1 in	3.18 mm	0.125 in	22

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 18.89
		14	$ 16.37
		28	$ 15.52
		56	$ 15.29
		112	$ 13.49
		252	$ 12.59
		504	$ 12.32

Description

General part information

111-43 Series

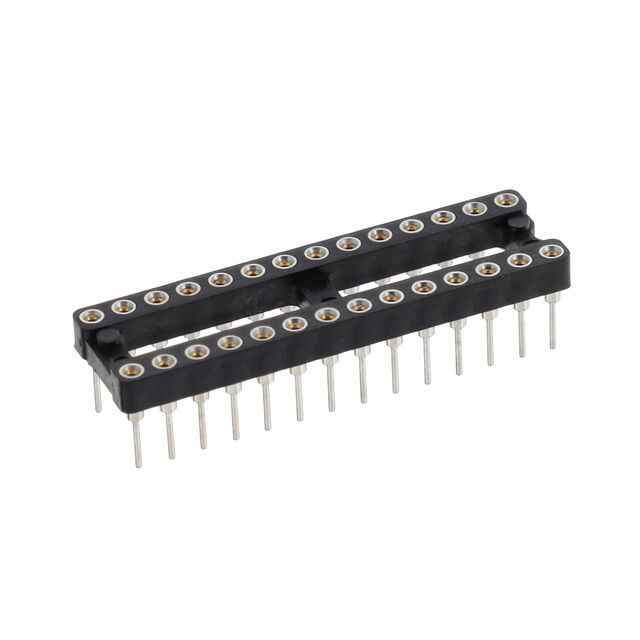

28 (2 x 14) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available
