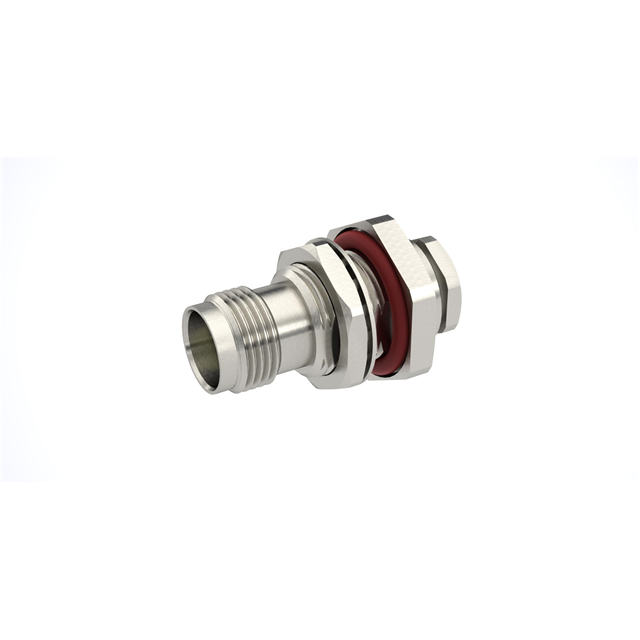

RF TNC CONNECTOR, FEMALE, PANEL MOUNT, CABLE MOUNT, CLAMP TERMINAL, JACK

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF TNC CONNECTOR, FEMALE, PANEL MOUNT, CABLE MOUNT, CLAMP TERMINAL, JACK

Technical Specifications

Parameters and characteristics for this part

Specification	R143324000

Body Finish	Nickel
Body Material	Brass
Cable Group	316, RG-174, 188, 187
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	335 V

Part	Body Finish	Cable Group	Shield Termination	Voltage Rating	Mating Cycles	Dielectric Material	Mounting Feature	Center Contact Plating	Center Contact Material	Connector Style	Impedance	Contact Termination	Number of Ports	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Connector Type	Frequency - Max [Max]
Radiall USA, Inc. R143324000W	Nickel	187 188 316 RG-174	Clamp	335 V	500	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut	Gold	Beryllium Copper	TNC	50 Ohms	Solder	1	Brass	-65 ░C	165 °C	Silver	Female Socket Jack	11 GHz
Radiall USA, Inc. R143324000	Nickel	187 188 316 RG-174	Clamp	335 V	500	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut	Gold	Beryllium Copper	TNC	50 Ohms	Solder	1	Brass	-65 ░C	165 °C	Silver	Female Socket Jack	11 GHz
Radiall USA, Inc. R143321700			Solder	1500 V	500	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut	Gold	Bronze	TNC	50 Ohms	Solder	1	Stainless Steel	-65 ░C	105 ░C	Silver	Female Socket Jack	180 MHz
Radiall USA, Inc. R143325000	Nickel	141 142 223 400 RG-58	Clamp	500 V	500	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut	Gold	Beryllium Copper	TNC	50 Ohms	Solder	1	Brass	-65 ░C	165 °C	Silver	Female Socket Jack	11 GHz
