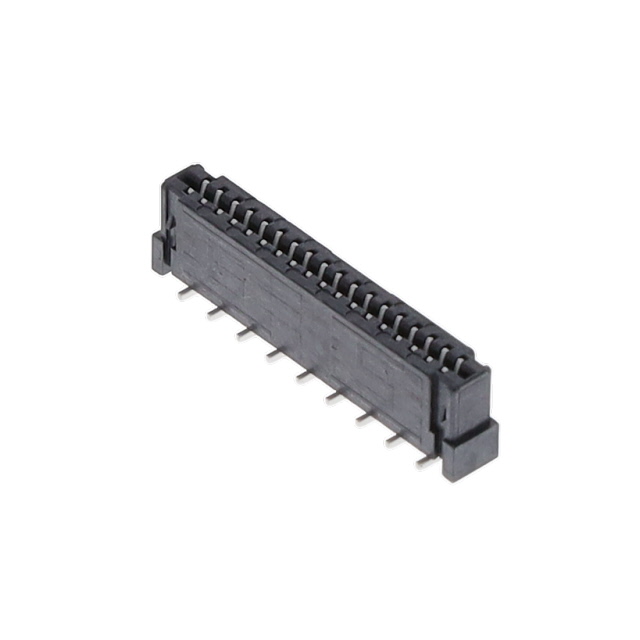

FC1-18-01-T-K-TR
ActiveSamtec Inc.
CONN FFC VERT 18POS 1MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
FC1-18-01-T-K-TR
ActiveSamtec Inc.
CONN FFC VERT 18POS 1MM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FC1-18-01-T-K-TR |
|---|---|
| Cable End Type | Straight |
| Connector/Contact Type | Contacts, Vertical - 2 Sided |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 2 A |
| Features | Pick and Place Cap |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FFC |
| Height Above Board | 5.18 mm |
| Height Above Board [z] | 0.204 in |
| Housing Color | Black |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Mating Cycles | 25 |
| Mounting Type | Surface Mount |
| Number of Positions | 18 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.71 | |
| 10 | $ 2.84 | |||
| 25 | $ 2.56 | |||
| 50 | $ 2.37 | |||
| 100 | $ 2.19 | |||
| 250 | $ 1.99 | |||
| Digi-Reel® | 1 | $ 3.71 | ||
| 10 | $ 2.84 | |||
| 25 | $ 2.56 | |||
| 50 | $ 2.37 | |||
| 100 | $ 2.19 | |||
| 250 | $ 1.99 | |||
| Tape & Reel (TR) | 600 | $ 1.48 | ||
Description
General part information
FC1-18 Series
18 Position FFC Connector Contacts, Vertical - 2 Sided 0.039" (1.00mm) Surface Mount
Documents
Technical documentation and resources
