EN2C5M26G2
ActiveSwitchcraft Inc.

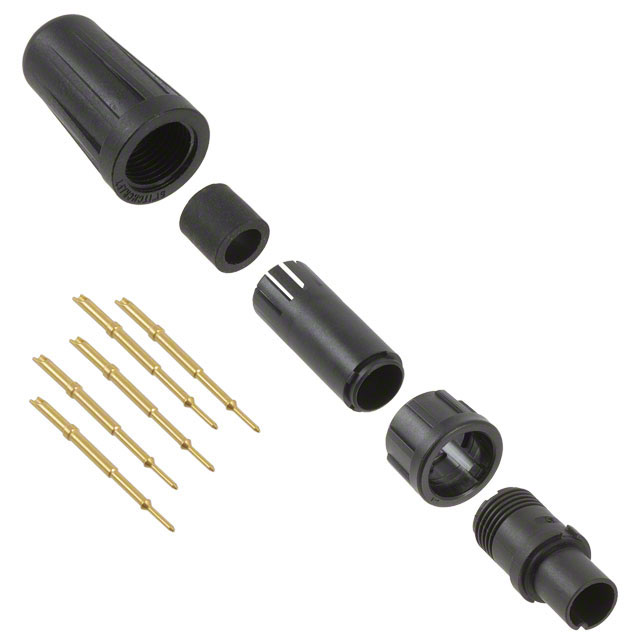

CONN PLUG MALE 5POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN2C5M26G2
ActiveSwitchcraft Inc.
CONN PLUG MALE 5POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN2C5M26G2 | EN2C5M Series |
|---|---|---|
| Applications | Marine, Communication Systems, Medical, Industrial | Marine, Communication Systems, Medical, Industrial |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.22 in |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 5.59 mm |
| Cable Opening | - | 2.54 - 3.56 mm |
| Cable Opening | - | 0.1 - 0.14 in |
| Cable Opening [Max] [diameter] | 4.57 mm | 4.57 mm |
| Cable Opening [Max] [diameter] | 0.18 in | 0.18 in |
| Cable Opening [Min] [diameter] | 3.56 mm | 3.56 mm |
| Cable Opening [Min] [diameter] | 0.14 in | 0.14 in |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Backshell | Coupling Nut, Backshell, Winged |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp, Solder Cup | Crimp, Solder Cup |
| Voltage Rating | 125 VAC | 125 VAC |
EN2C5M Series
CONN PLUG MALE 5POS GOLD CRIMP
| Part | Features | Insert Material | Orientation | Shielding | Contact Finish - Mating | Fastening Type | Backshell Material, Plating | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Connector Type | Contact Material | Color | Voltage Rating | Mounting Type | Ingress Protection | Applications | Primary Material | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN2C5M26G3W | Backshell, Coupling Nut, Winged | Elastomer | Keyed | Unshielded | Gold | Bayonet Lock | Thermoplastic | 0.18 in | 0.22 in | 4.57 mm | 5.59 mm | Crimp, Solder Cup | 85 °C | -40 °C | UL94 V-0 | Male Pins, Plug | Copper Alloy | Black | 125 VAC | Free Hanging (In-Line) | IP66, IP67, IP68 | Communication Systems, Industrial, Marine, Medical | Plastic | ||||||
Switchcraft Inc. EN2C5M26G3 | Backshell, Coupling Nut | Elastomer | Keyed | Unshielded | Gold | Bayonet Lock | Thermoplastic | 0.18 in | 0.22 in | 4.57 mm | 5.59 mm | Crimp, Solder Cup | 85 °C | -40 °C | UL94 V-0 | Male Pins, Plug | Copper Alloy | Black | 125 VAC | Free Hanging (In-Line) | IP66, IP67, IP68 | Communication Systems, Industrial, Marine, Medical | Plastic | ||||||
Switchcraft Inc. EN2C5M26G2 | Backshell, Coupling Nut | Elastomer | Keyed | Unshielded | Gold | Bayonet Lock | Thermoplastic | Crimp, Solder Cup | 85 °C | -40 °C | UL94 V-0 | Male Pins, Plug | Copper Alloy | Black | 125 VAC | Free Hanging (In-Line) | IP66, IP67, IP68 | Communication Systems, Industrial, Marine, Medical | Plastic | 4.57 mm | 3.56 mm | 0.14 in | 0.18 in | ||||||
Switchcraft Inc. EN2C5M26G1W | Backshell, Coupling Nut, Winged | Elastomer | Keyed | Unshielded | Gold | Bayonet Lock | Thermoplastic | Crimp, Solder Cup | 85 °C | -40 °C | UL94 V-0 | Male Pins, Plug | Copper Alloy | Black | 125 VAC | Free Hanging (In-Line) | IP66, IP67, IP68 | Communication Systems, Industrial, Marine, Medical | Plastic | 2.54 mm, 3.56 mm | 0.1 in, 0.14 in | ||||||||
Switchcraft Inc. EN2C5M26DCW | Backshell, Coupling Nut, Winged | Elastomer | Keyed | Unshielded | Gold | Bayonet Lock | Thermoplastic | Crimp, Solder Cup | 85 °C | -40 °C | UL94 V-0 | Male Pins, Plug | Copper Alloy | Black | 125 VAC | Free Hanging (In-Line) | IP66, IP67, IP68 | Communication Systems, Industrial, Marine, Medical | Plastic | ||||||||||
Switchcraft Inc. EN2C5M26G2W | Backshell, Coupling Nut, Winged | Elastomer | Keyed | Unshielded | Gold | Bayonet Lock | Thermoplastic | Crimp, Solder Cup | 85 °C | -40 °C | UL94 V-0 | Male Pins, Plug | Copper Alloy | Black | 125 VAC | Free Hanging (In-Line) | IP66, IP67, IP68 | Communication Systems, Industrial, Marine, Medical | Plastic | 4.57 mm | 3.56 mm | 0.14 in | 0.18 in | ||||||
Switchcraft Inc. EN2C5M26DC | Backshell, Coupling Nut | Elastomer | Keyed | Unshielded | Gold | Bayonet Lock | Thermoplastic | Crimp, Solder Cup | 85 °C | -40 °C | UL94 V-0 | Male Pins, Plug | Copper Alloy | Black | 125 VAC | Free Hanging (In-Line) | IP66, IP67, IP68 | Communication Systems, Industrial, Marine, Medical | Plastic | ||||||||||
Switchcraft Inc. EN2C5M26G1 | Backshell, Coupling Nut | Elastomer | Keyed | Unshielded | Gold | Bayonet Lock | Thermoplastic | Crimp, Solder Cup | 85 °C | -40 °C | UL94 V-0 | Male Pins, Plug | Copper Alloy | Black | 125 VAC | Free Hanging (In-Line) | IP66, IP67, IP68 | Communication Systems, Industrial, Marine, Medical | Plastic | 2.54 mm, 3.56 mm | 0.1 in, 0.14 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 7.29 | |
Description
General part information
EN2C5M Series
5 Position Circular Connector Plug, Male Pins Crimp or Solder Cup
